ATI Radeon X1650 (RV530/RV535)

Specification ATI graphics cards

Benchmark points

1668
ATI Radeon X1650 ATI Radeon X1650

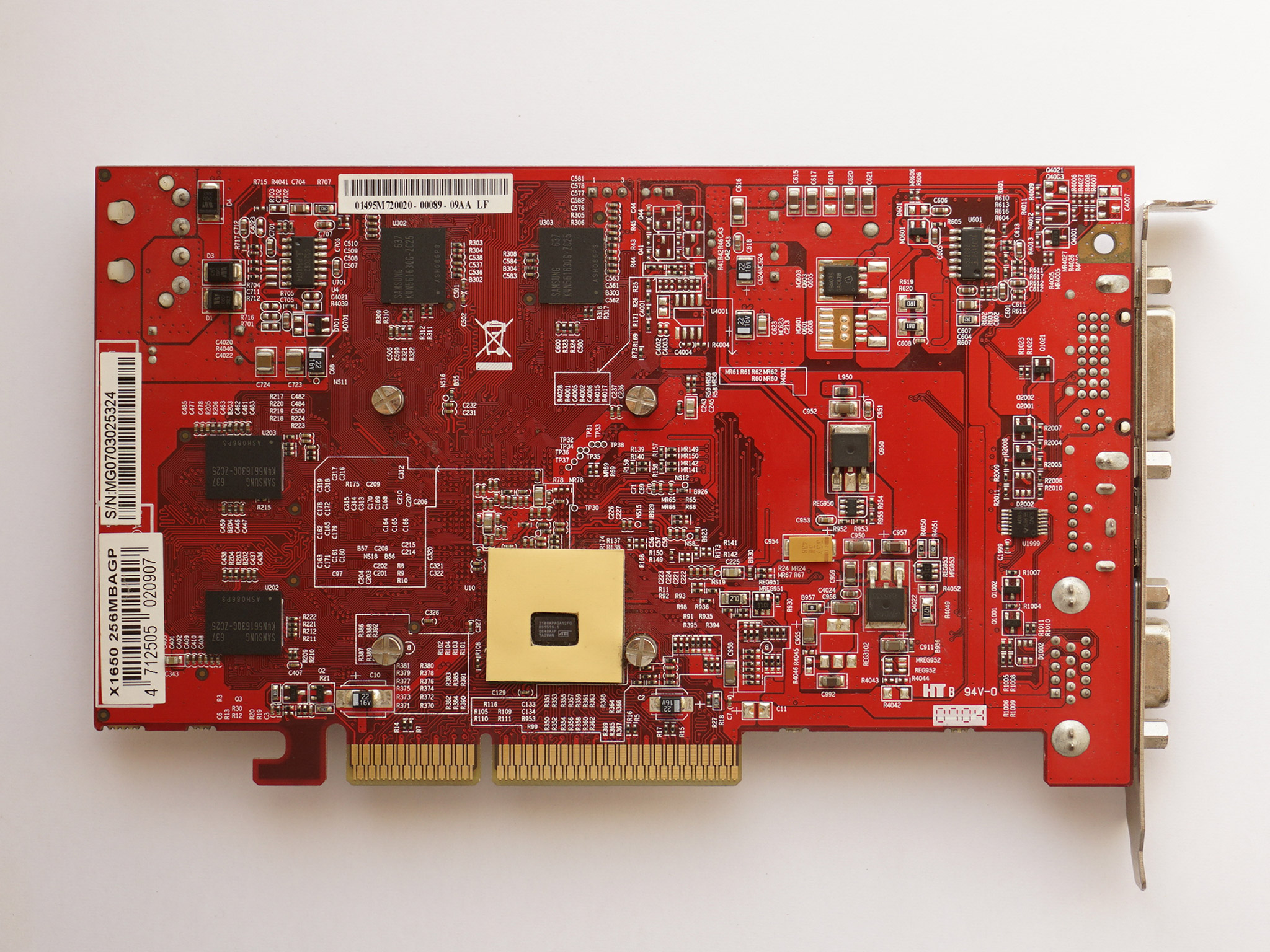

Tul X1650 AGP 8x 256 Mb

ATI Radeon X1650 ATI Radeon X1650

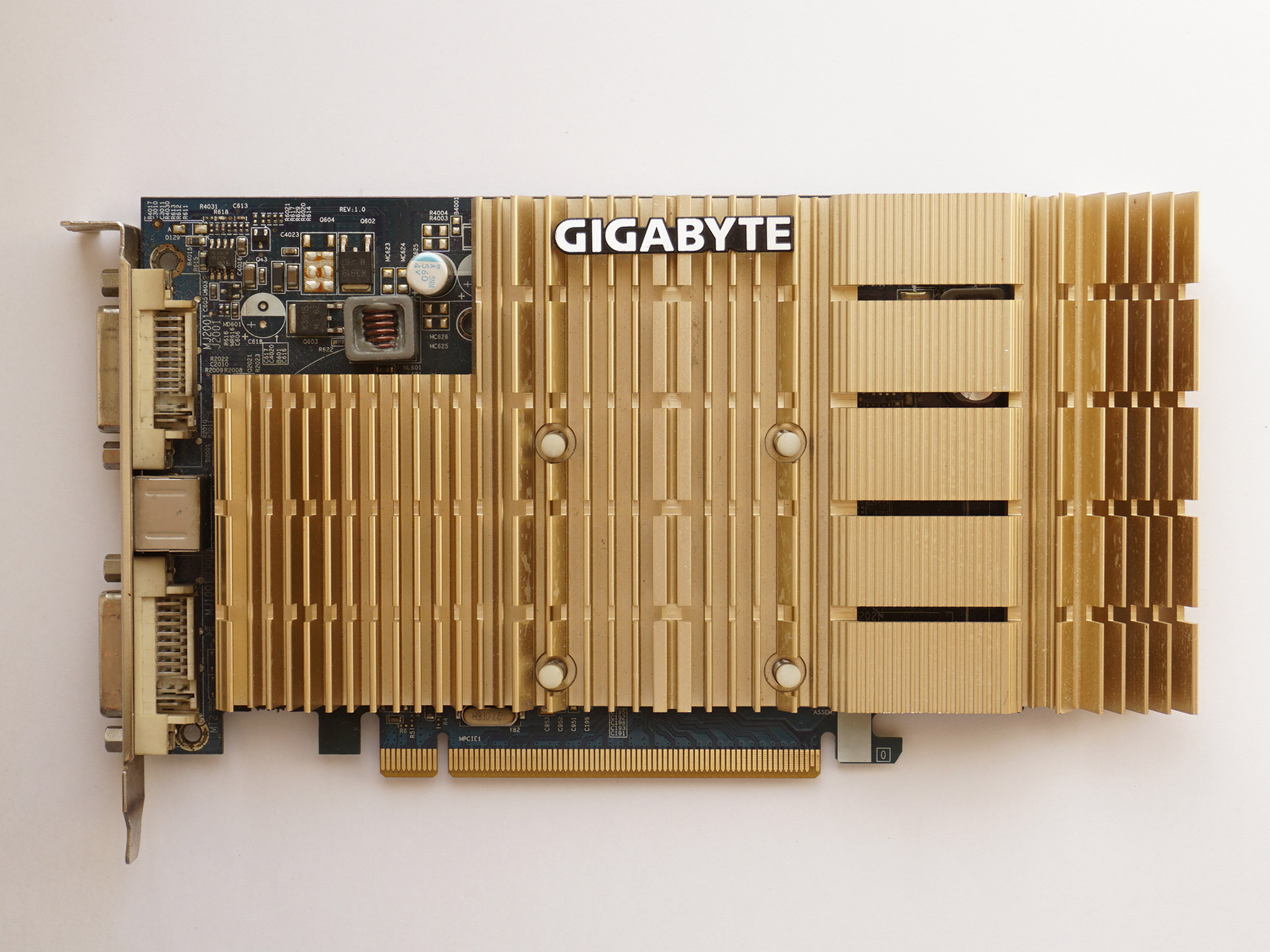

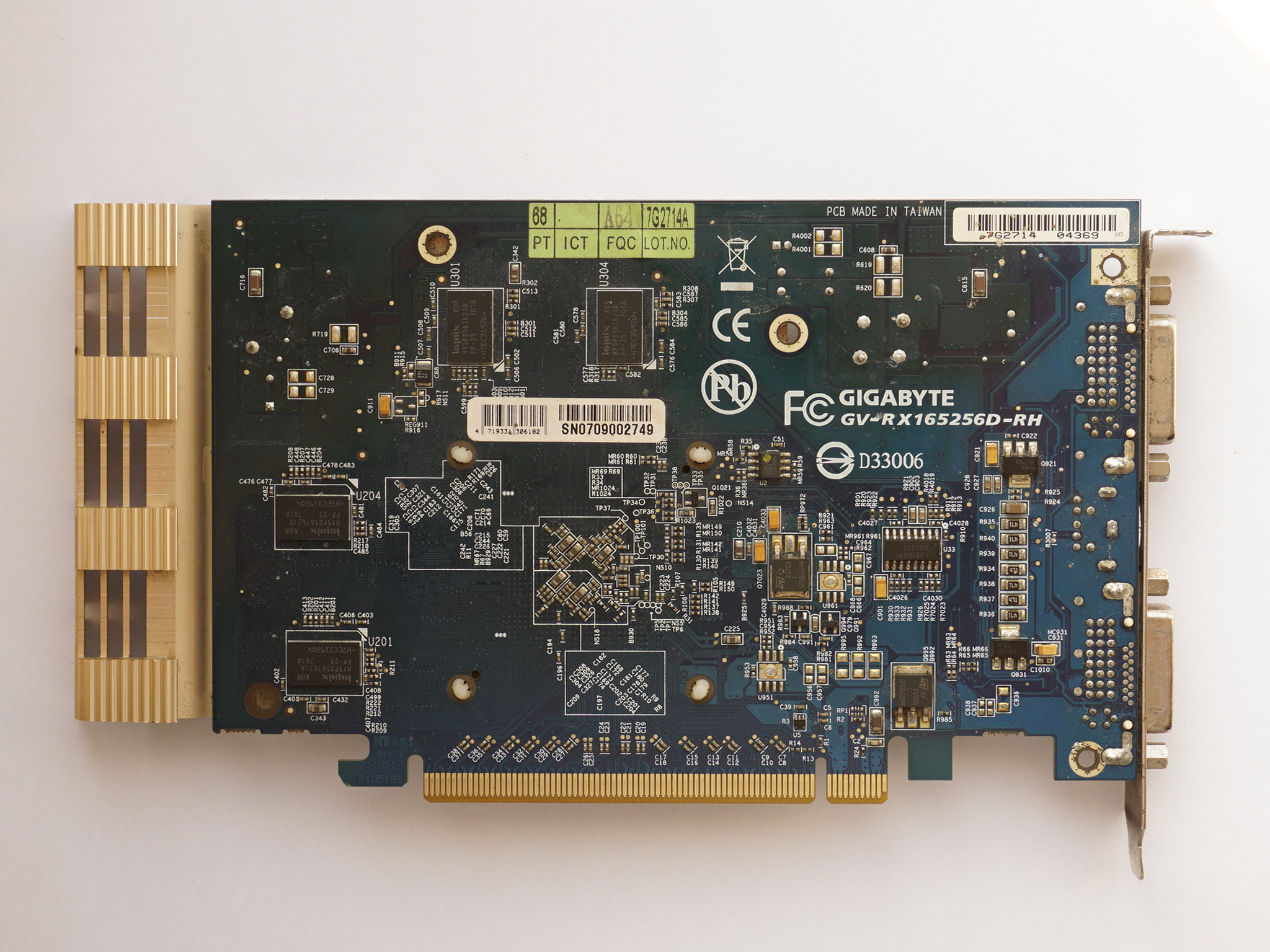

Gigabyte X1650 PCIe 256 Mb

Manufacturer GPU Slot GPU Transistors Memory DirectX OpenGL
Mhz Pipes Fillrate Millions ┬Ám Mhz Mb ns Type bit Bandwith
  Tul Radeon X1650 RV530 AGP 8x 500 12x1x5 6000 157 .09 396 256 25 DDR2 128 12672 9.0c 2.1
  Gigabyte GV-RX165256D RV535 PCIe .08


ATI Radeon X1650 PCIe benchmark results (XP Driver 10.2)


Model CrystalMark09 Quake3 Demo 3DMark 2000 3DMark 2001SE SeriousSam FE Aquamark3 Chameleonmark
GDI D2D DirectX OpenGL
  ATI Radeon X1650 11780 6789 675.4 21972 20616 120.6 288.6 47491 218.11
