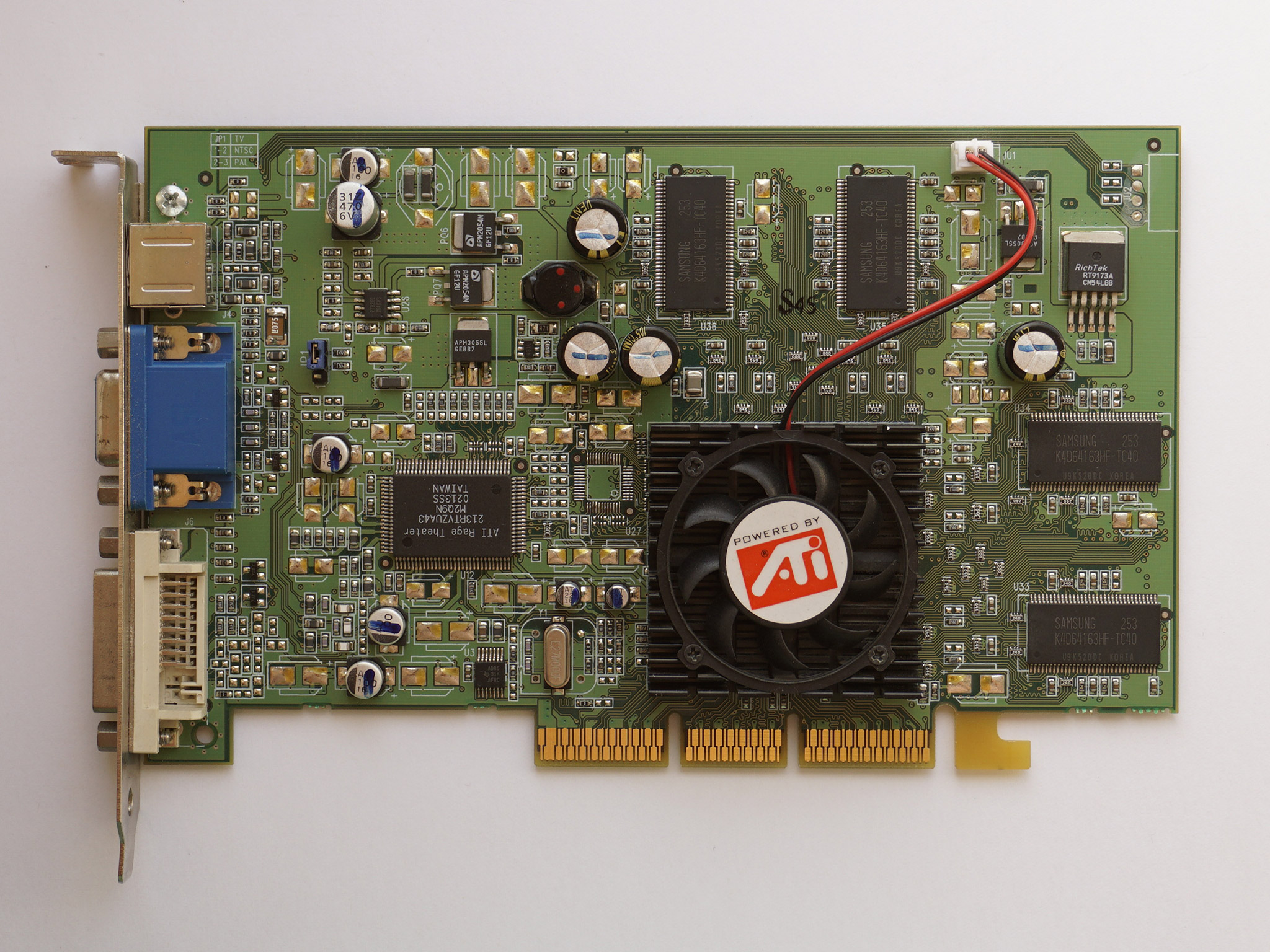

ATI Radeon 9100 (R200)
Specification ATI graphics cards Benchmark points |
|---|
| 725 |

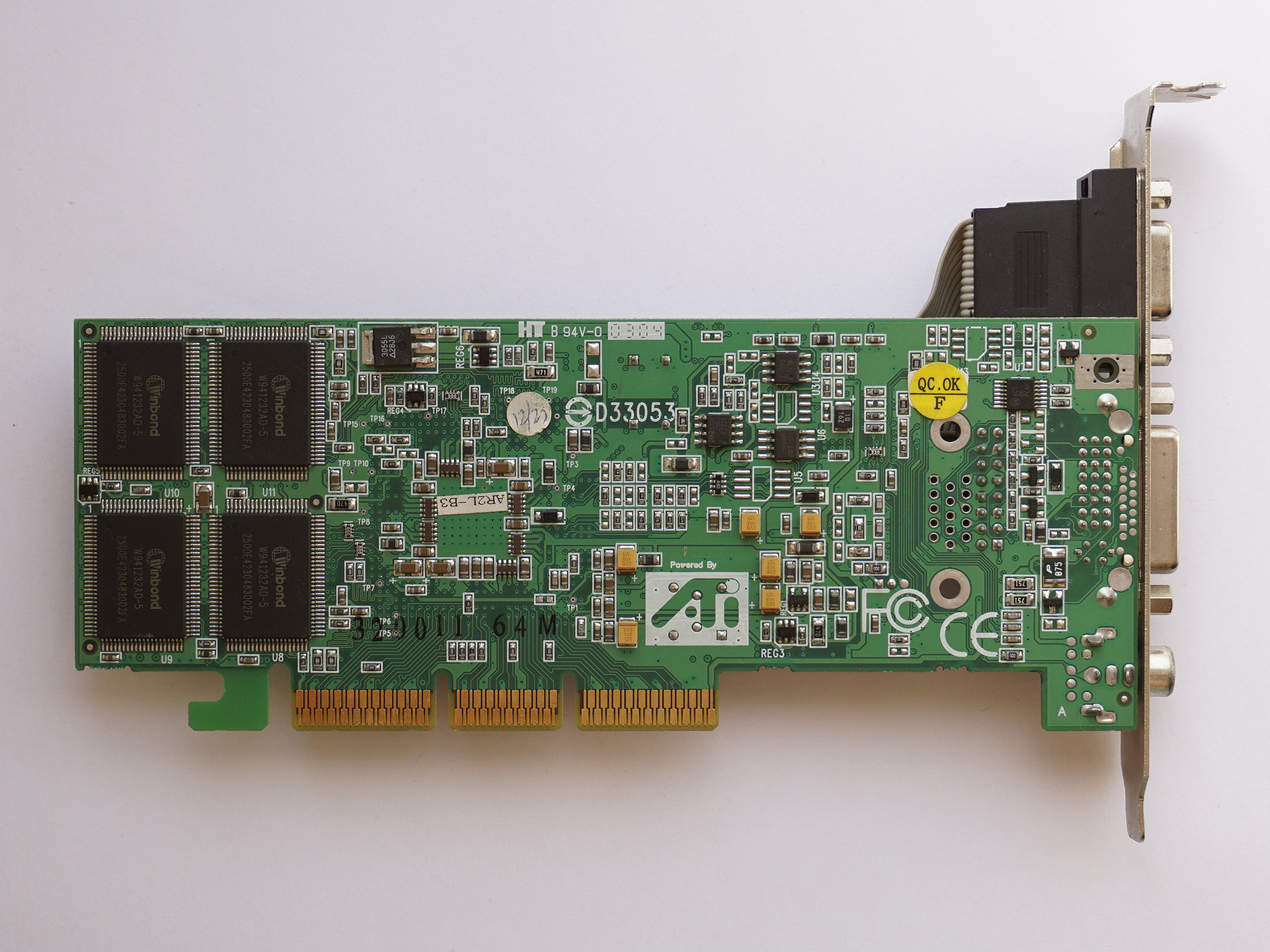

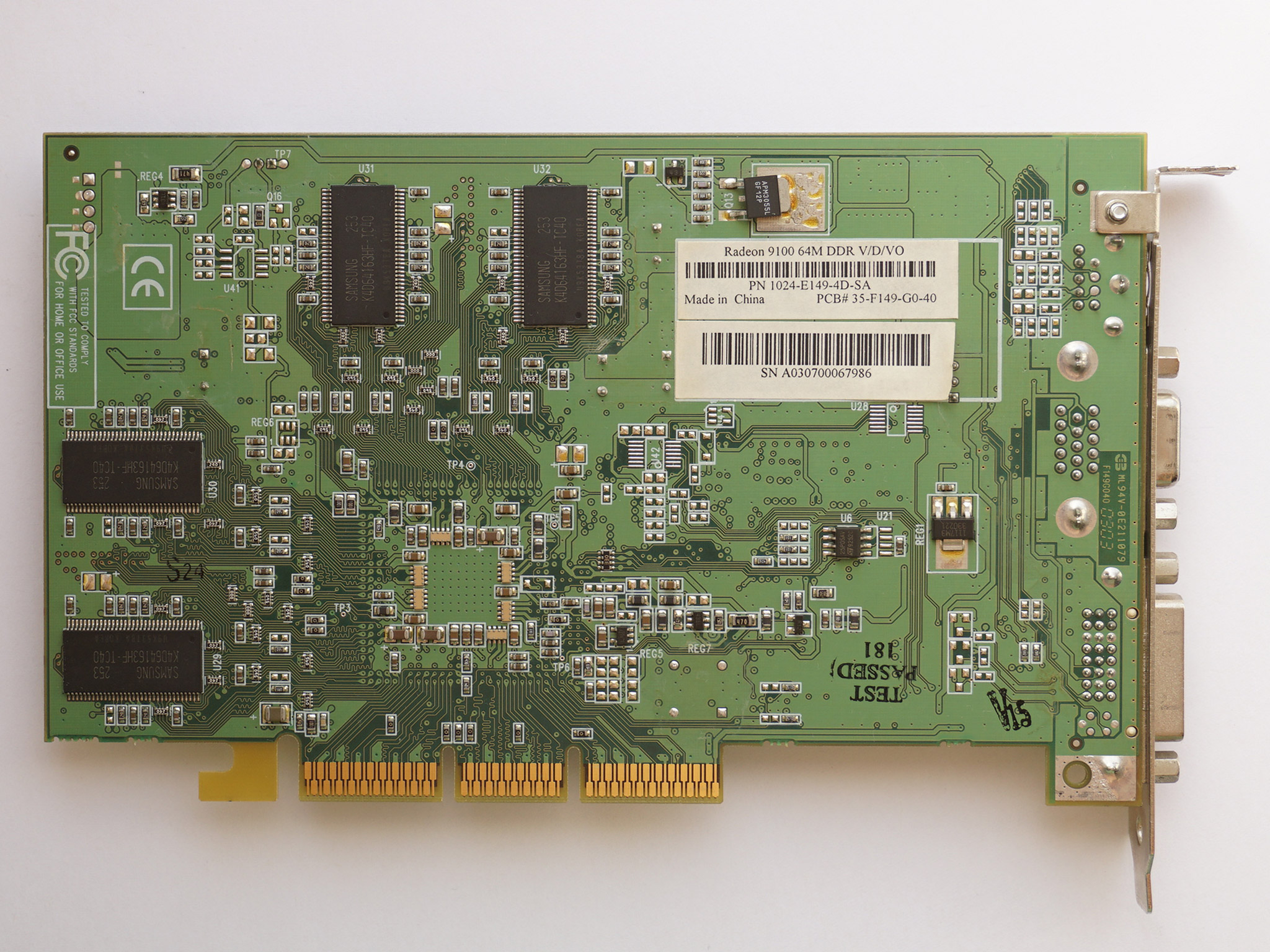

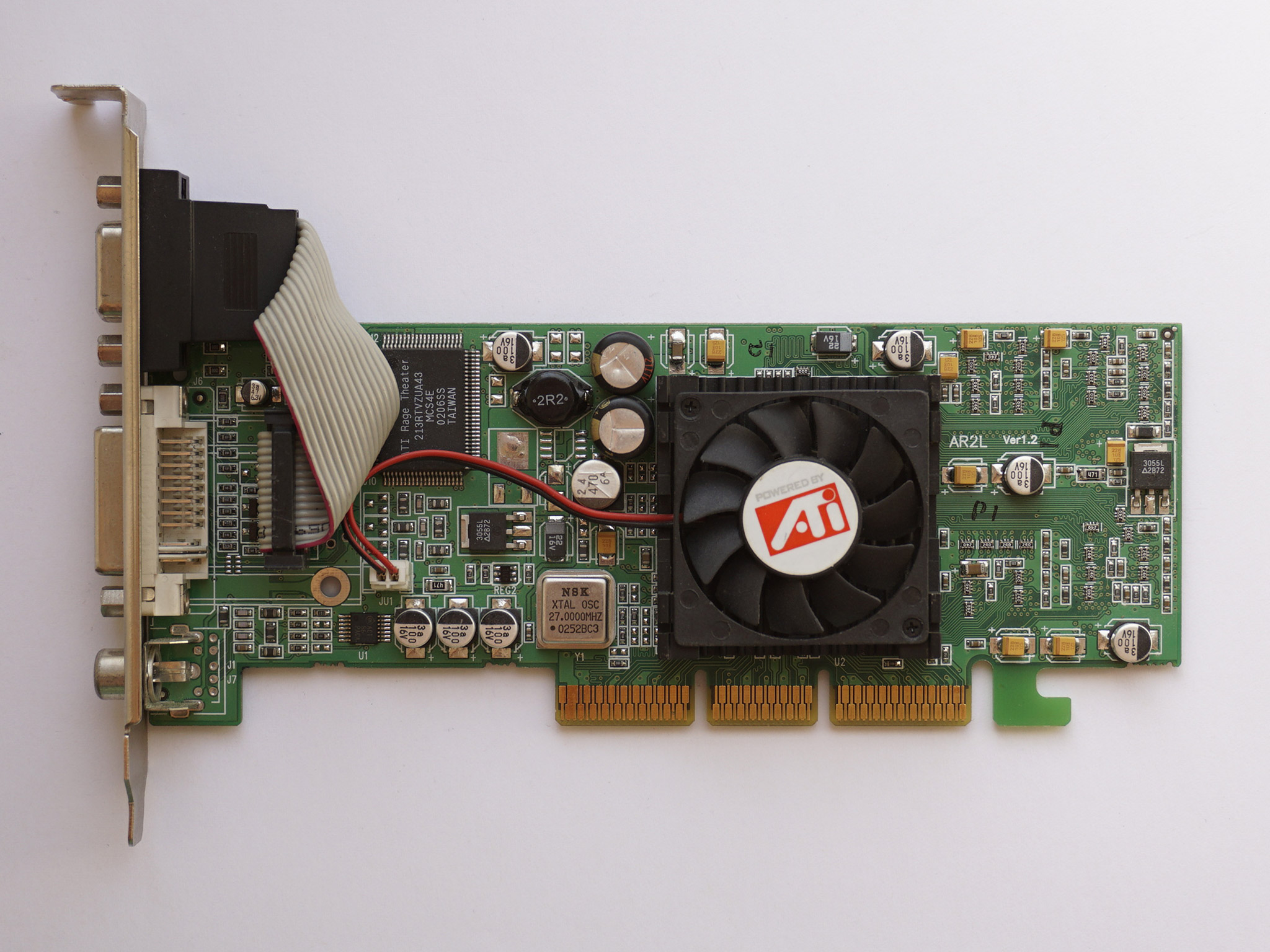

Powercolor AR2L AGP 4x 64 Mb
Powercolor AR2L AGP 4x 64 Mb
| Manufacturer | Ramdac | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mhz | Pipes | Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | |||||
| Powercolor AR2L | 400 | AGP 4x | 250 | 4x2x2 | 2000 | 60 | .15 | 230 | 64 | 40 | DDR | 128 | 7360 | 8.1 | 1.4 |
| Powercolor AR2L | 184 | 5 | 5888 | ||||||||||||
ATI Radeon 9100 benchmark results (XP Driver 5.7)
| Model | CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | Aquamark3 | Chameleonmark | ||
|---|---|---|---|---|---|---|---|---|---|
| GDI | D2D | DirectX | OpenGL | ||||||
| ATI Radeon 9100 | 10564 | 3004 | 396.9 | 13438 | 10087 | 338.5 | 392.7 | 18267 | 21.52 |
