ATI Radeon VE (RV100)
Specification ATI graphics cards Benchmark points |
|---|
| 160 |

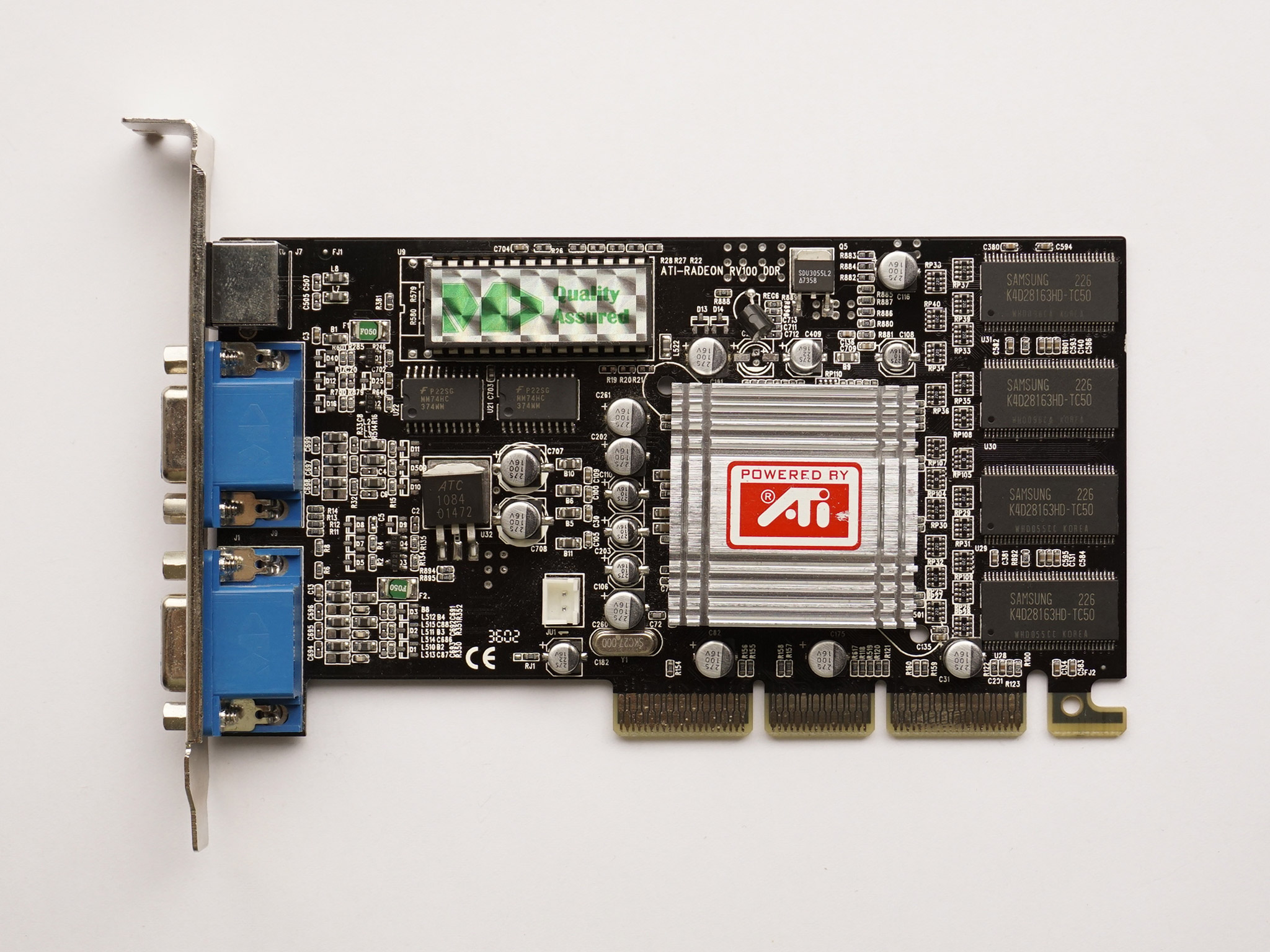

Manli Radeon VE AGP 4x 64 Mb

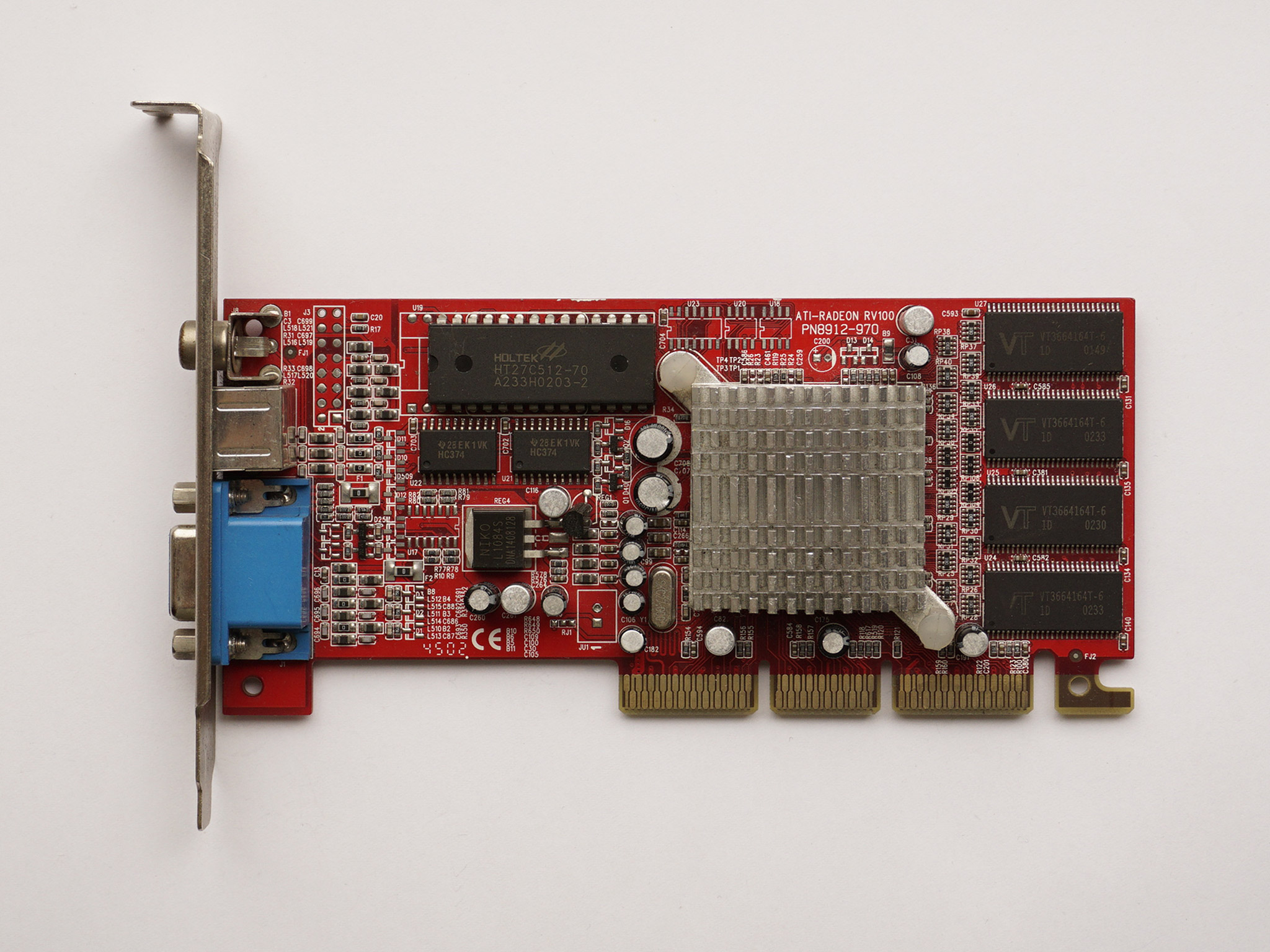

PowerMagic Radeon VE AGP 4x 32 Mb
| Manufacturer | Ramdac | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mhz | Pipes | Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | |||||
| Manli Radeon VE | 300 | AGP 4x | 166 | 1x3x1 | 498 | 30 | .18 | 166 | 64 | 50 | DDR | 64 | 2656 | 7.0 | 1.3 |
| PowerMagic Radeon VE | 128 | 384 | 128 | 32 | 6 | 2048 | |||||||||
ATI Radeon VE benchmark results (XP Driver 5.7)
| Model | CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | ||
|---|---|---|---|---|---|---|---|
| GDI | D2D | DirectX | OpenGL | ||||
| Manli Radeon VE | 5791 | 907 | 92.5 | 3274 | 2008 | 115.0 | 140.8 |
