ATI Radeon 7000 SDR (RV100)
Specification ATI graphics cards Benchmark points |
|---|
| 140 |

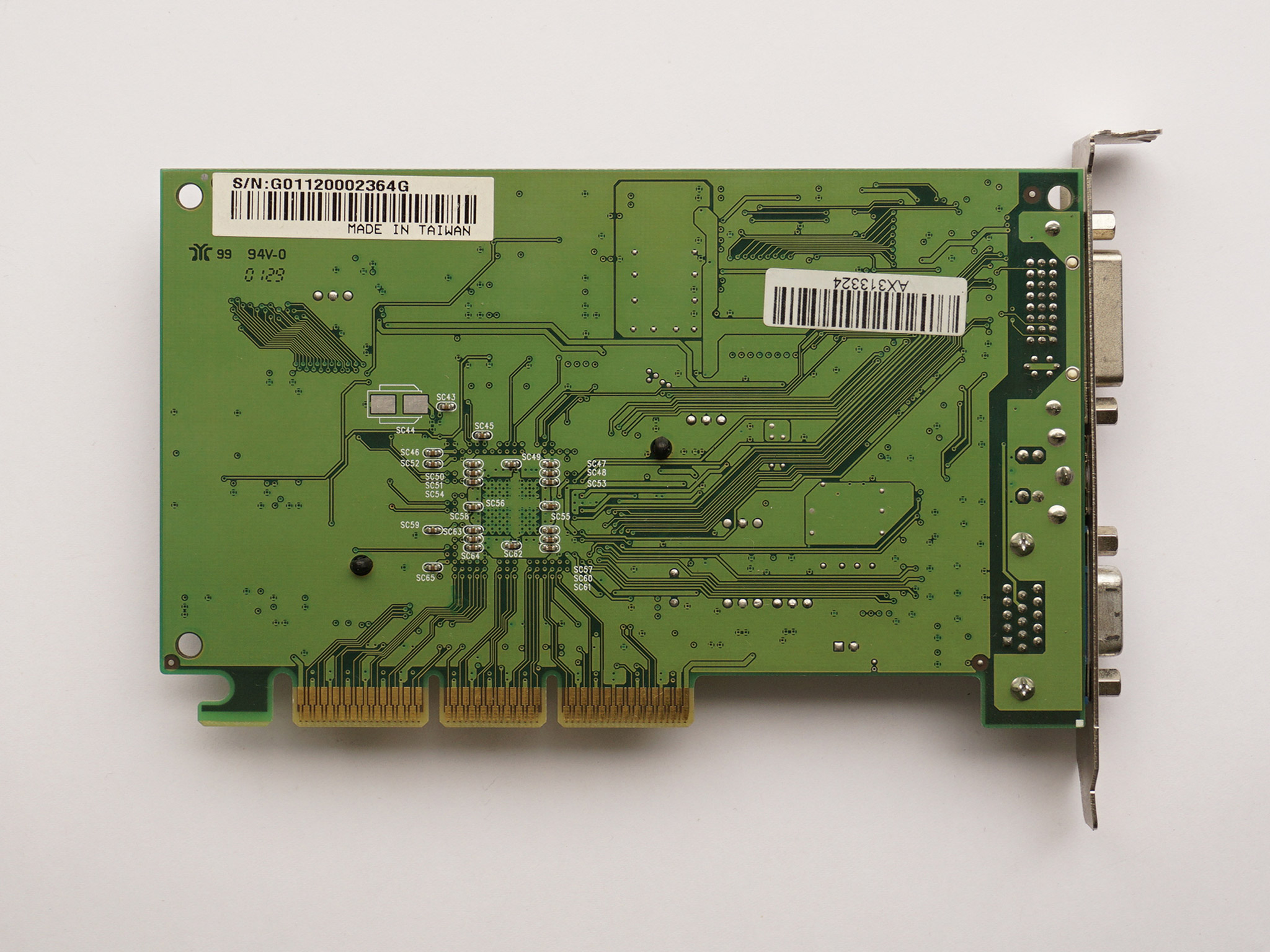

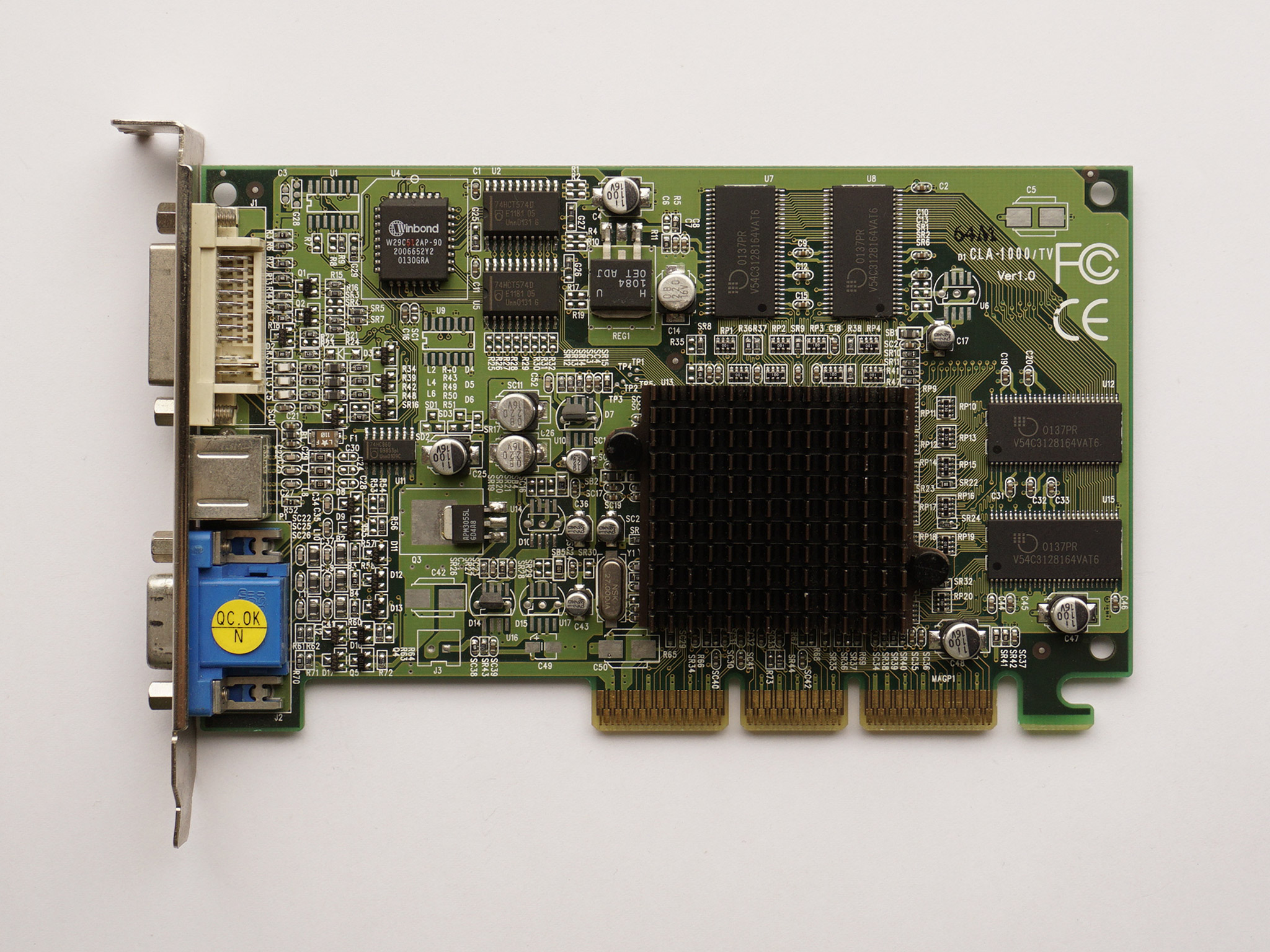

Tul CLA-1000/TV AGP 4x 64 Mb

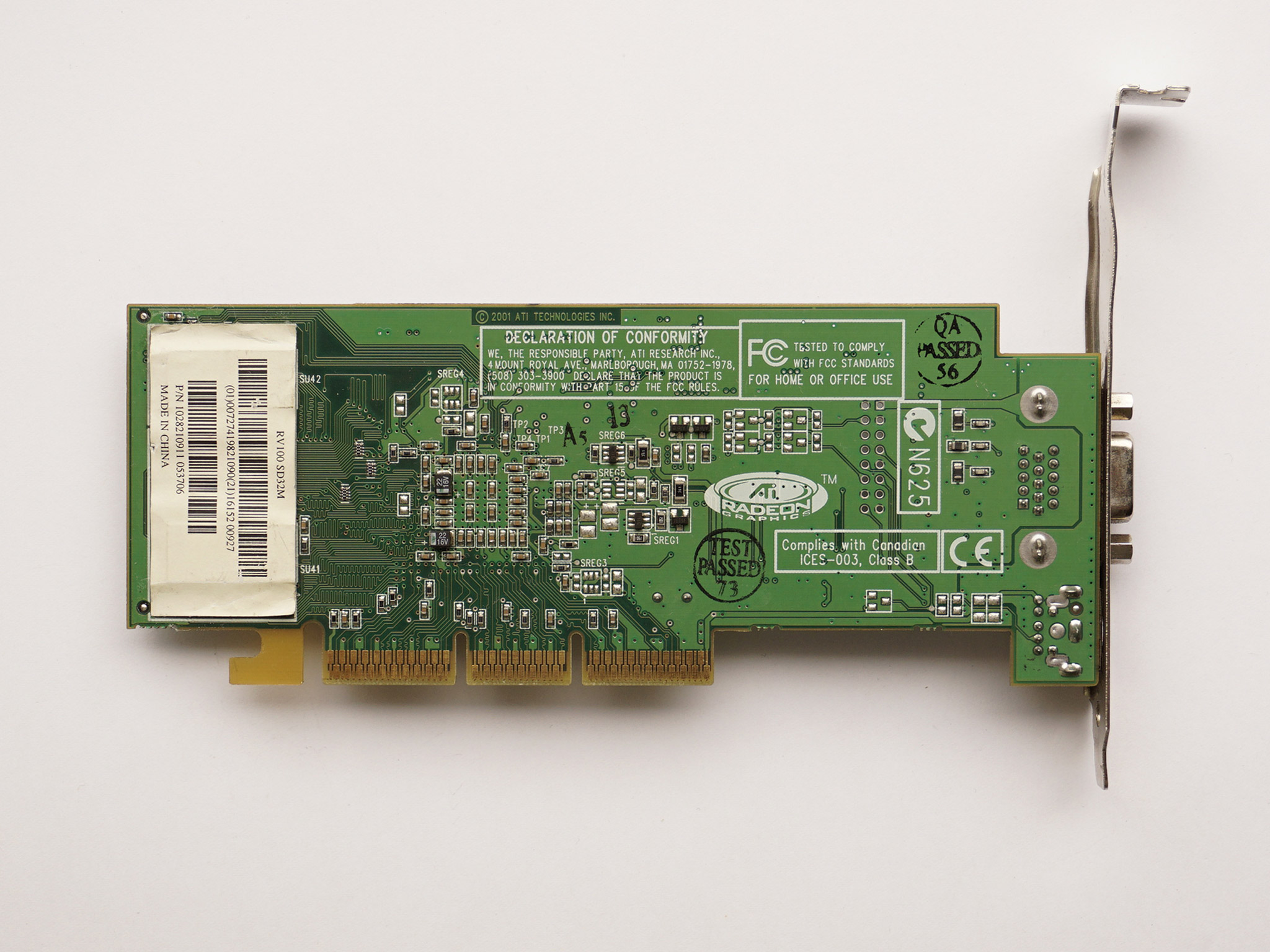

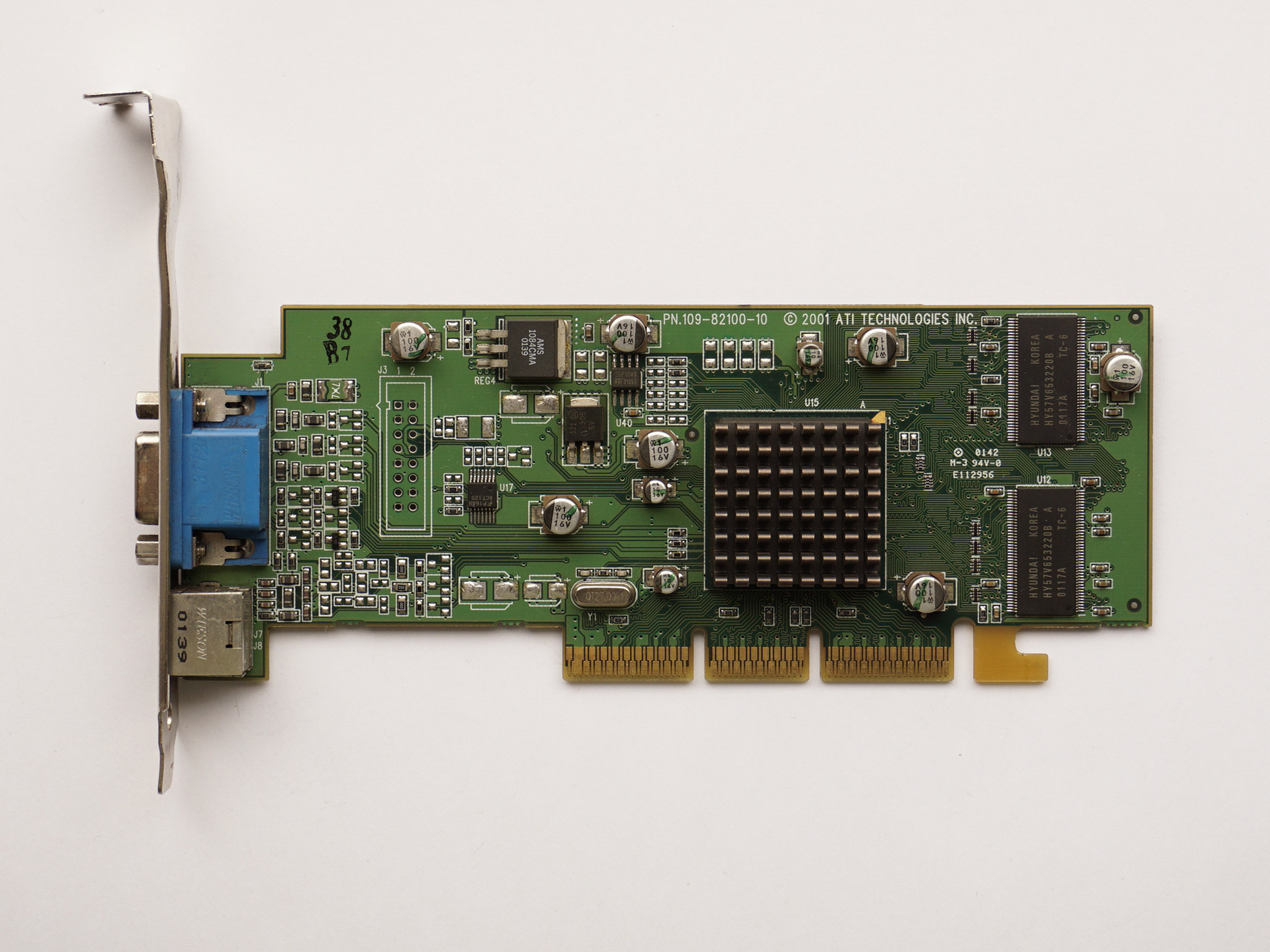

ATI Radeon 7000 AGP 4x 32 Mb
| Manufacturer | Ramdac | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mhz | Pipes | Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | |||||
| Tul Radeon 7000 | 300 | AGP 4x | 160 | 1x3x1 | 480 | 30 | .18 | 160 | 64 | 6 | Sdram | 64 | 1280 | 7.0 | 1.3 |
| ATI 109-82100-10 | 158 | 474 | 158 | 32 | 1264 | ||||||||||
ATI Radeon 7000 SDR benchmark results (XP Driver 5.7)
| Model | CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | ||
|---|---|---|---|---|---|---|---|
| GDI | D2D | DirectX | OpenGL | ||||
| Tul Radeon 7000 SDR | 5178 | 913 | 78.7 | 2872 | 1683 | 104.6 | 124.7 |
