Matrox M-Series

Specification Matrox graphics cards

Benchmark points
598

Matrox M-Series represents 9 cards based on medical PX-A1 chipset.
The same gpu is used in many variants with different amount of memory, PCIe x16 and PCIe x1 slots, and different connectors: DVI-I, LFH-60, DP, miniDP and KX-20.

Used cards: Not rare and not expensive

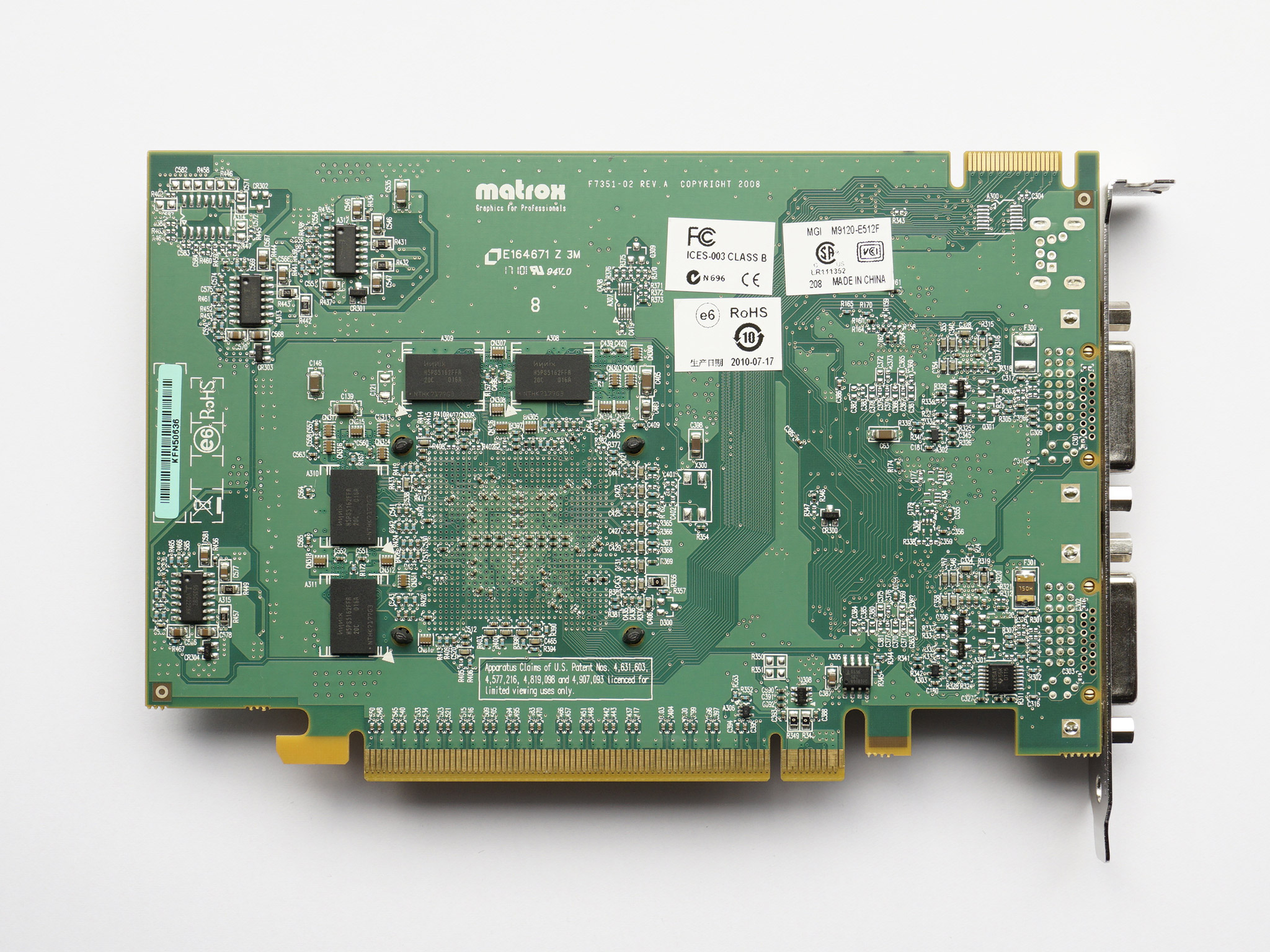

Matrox M9120
PCIe x16 512 Mb DDR2

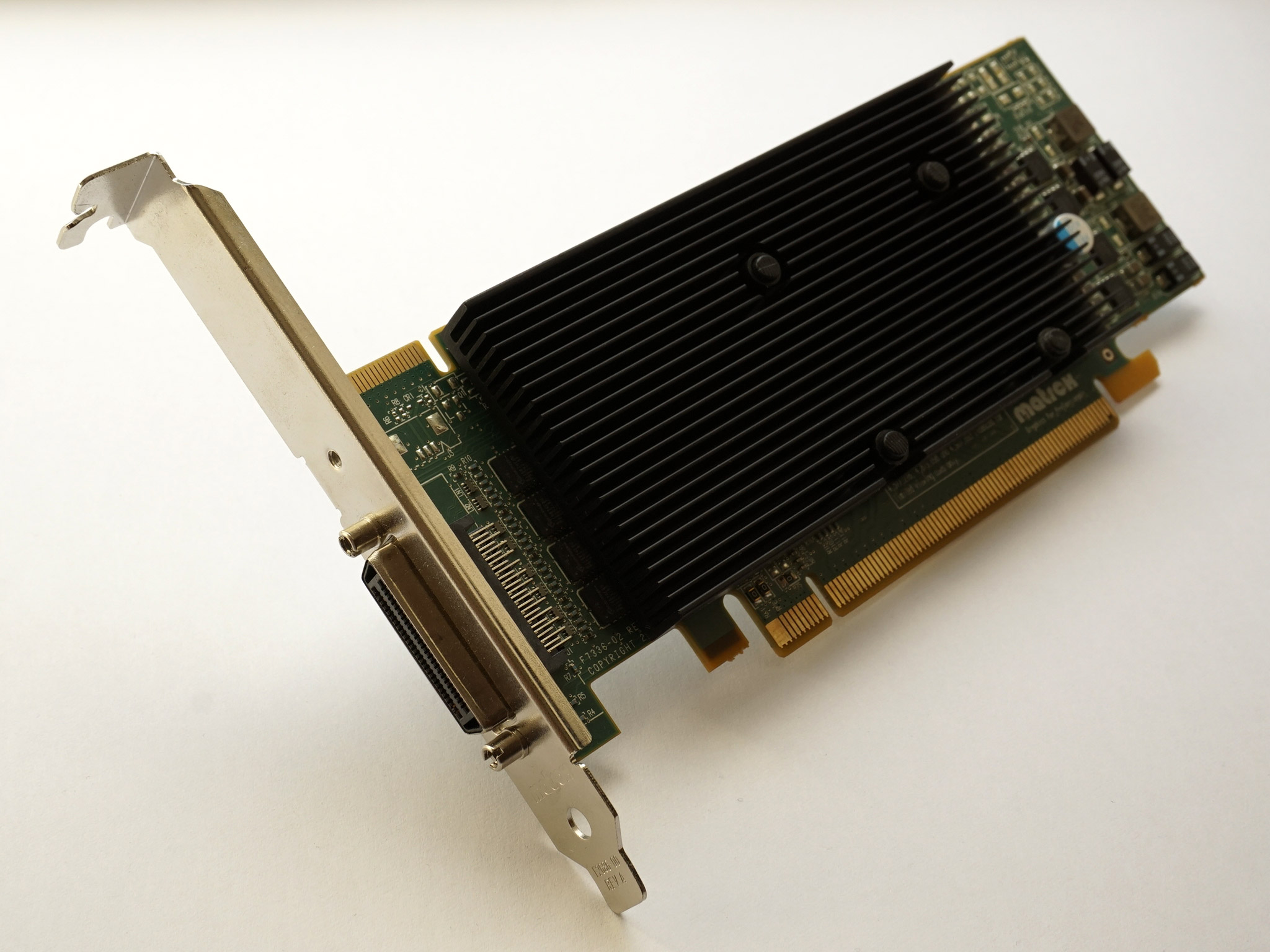

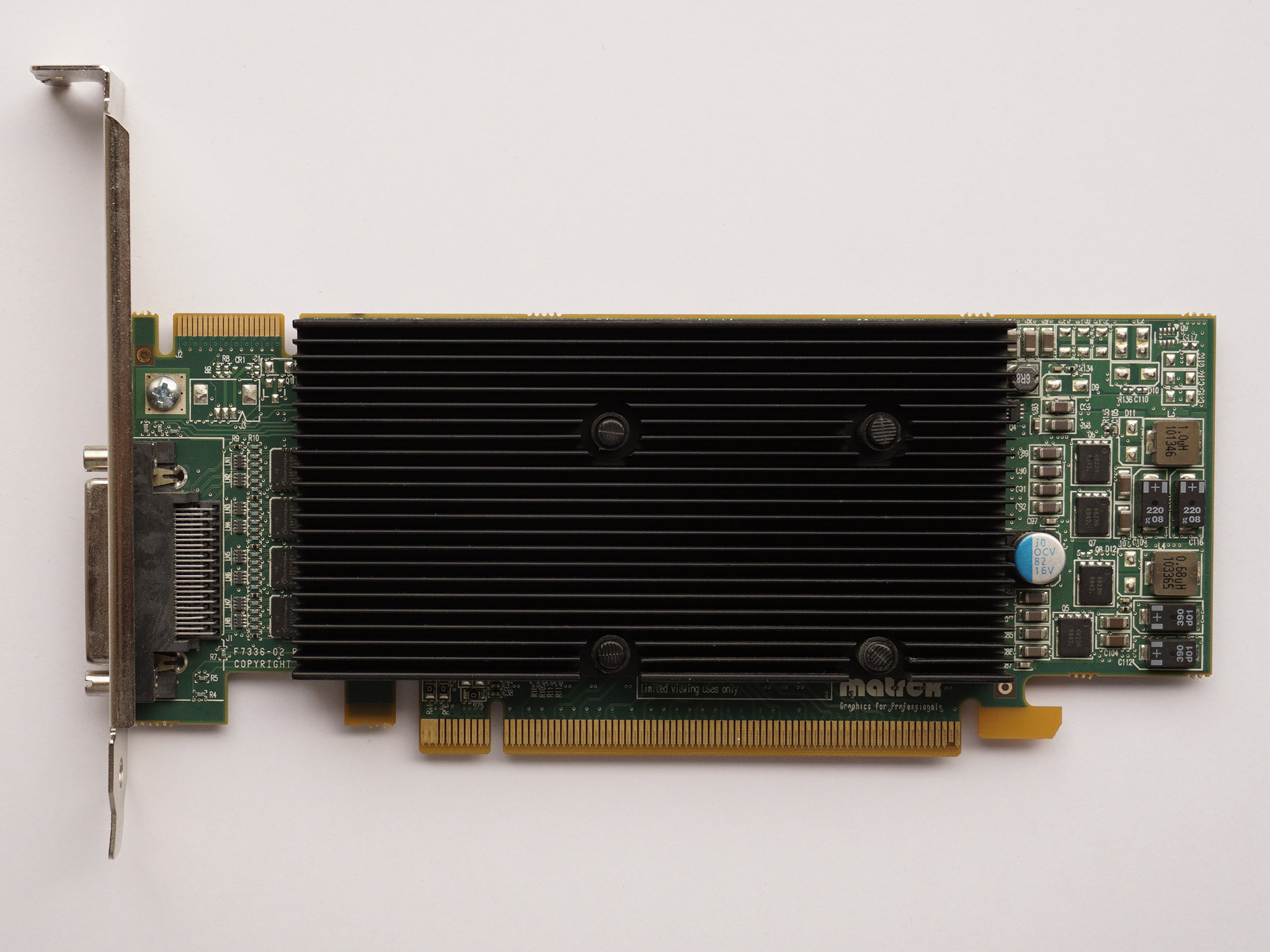

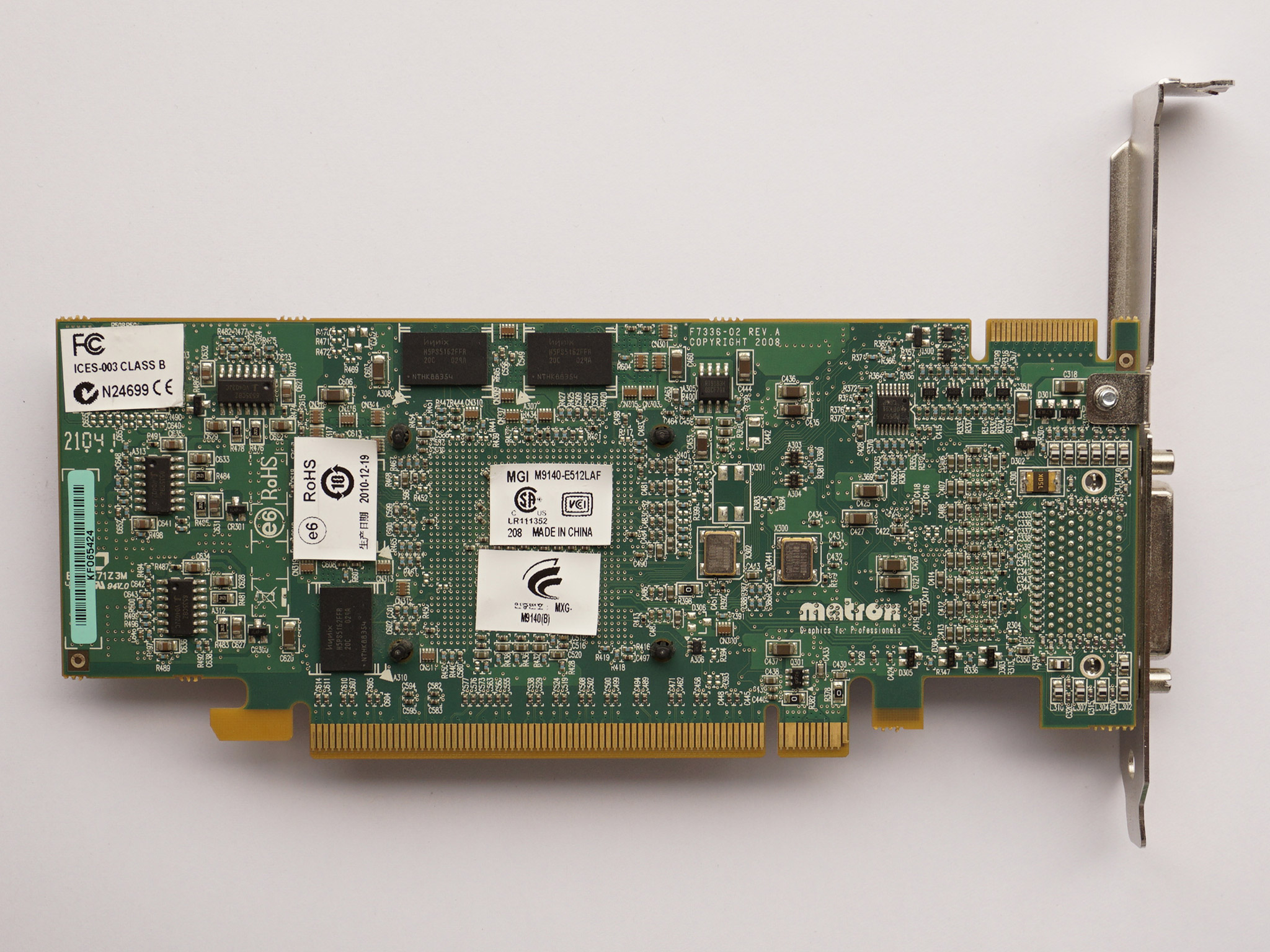

Matrox M9140
PCIe x16 512 Mb DDR2

Model	Ramdac	Slot	GPU			Transistors		Memory						DirectX	OpenGL
Model	Ramdac	Slot	Mhz	Pipes	Fillrate	Millions	µm	Mhz	Mb	ns	Type	bit	Bandwith	DirectX	OpenGL
M9120 F7351-02	4x400	PCIe x16					.09		512		DDR2	128		9.0	2.0
M9140 F7336-02	4x400	PCIe x16					.09		512		DDR2	128		9.0	2.0

Matrox M9140 benchmark results

Model	CrystalMark09		Quake3 Demo	3DMark 2000	3DMark 2001SE	SeriousSam FE		Aquamark3	Chameleonmark
Model	GDI	D2D	Quake3 Demo	3DMark 2000	3DMark 2001SE	DirectX	OpenGL	Aquamark3	Chameleonmark
Matrox M9140	11904	5555	217.1	5313	7005	27.3	103.7	12445	81.20

Matrox M-Series

Benchmark points

Matrox M9120 PCIe x16 512 Mb DDR2

Matrox M9140 PCIe x16 512 Mb DDR2

Matrox M9140 benchmark results
