Matrox Mystique 220
Specification Matrox graphics cards Benchmark points |
|---|
| 10.2 |
Matrox Mystique 220 with Cyclone chipset is upgraded Mystique.
Card use faster RAMDAC at 220 Mhz and little faster gpu/memory clocks.
Max refresh: 1600x1200/16 @85 Hz
Used cards: Rare and not expensive
Card use faster RAMDAC at 220 Mhz and little faster gpu/memory clocks.
Max refresh: 1600x1200/16 @85 Hz
Used cards: Rare and not expensive

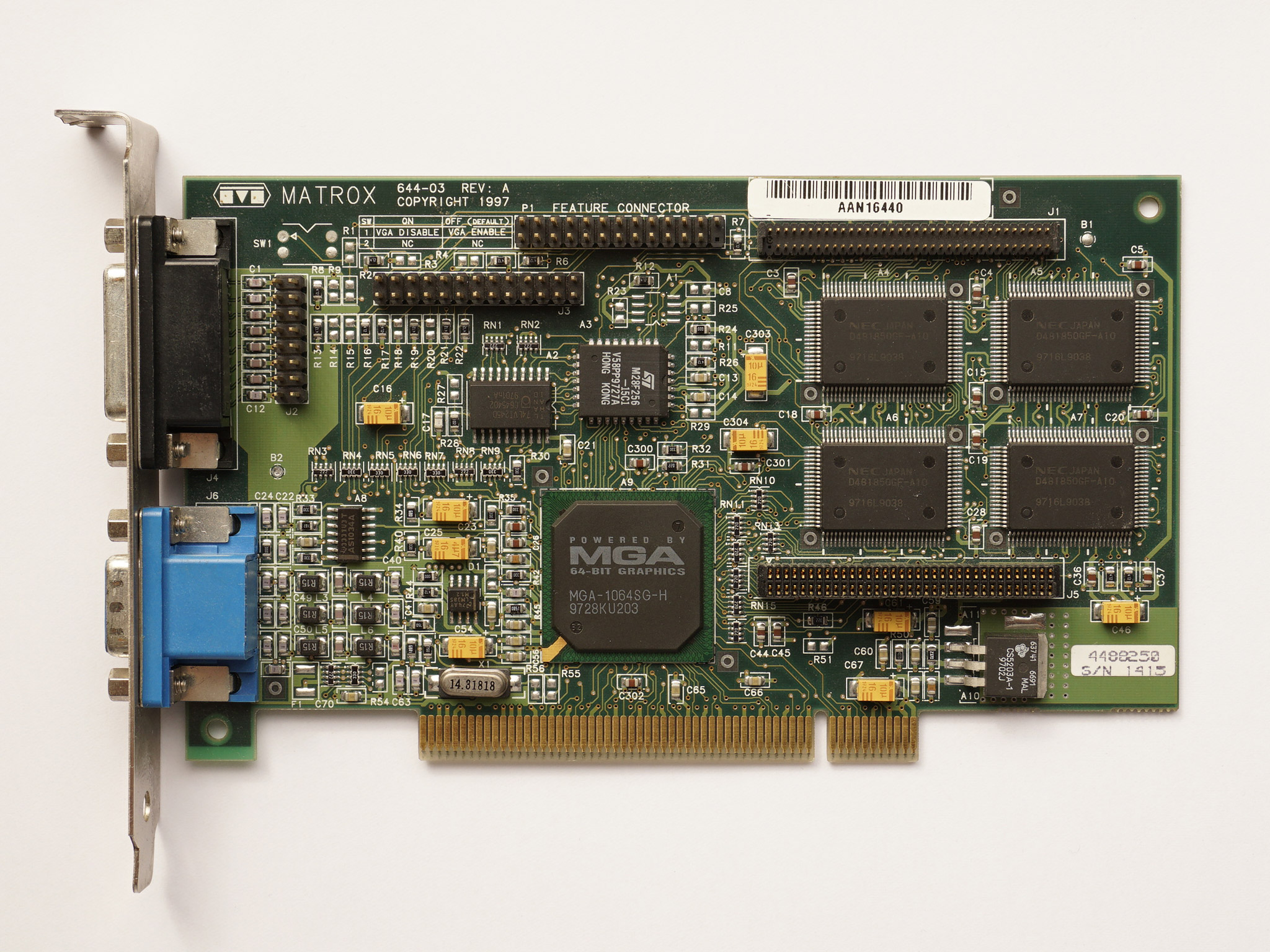

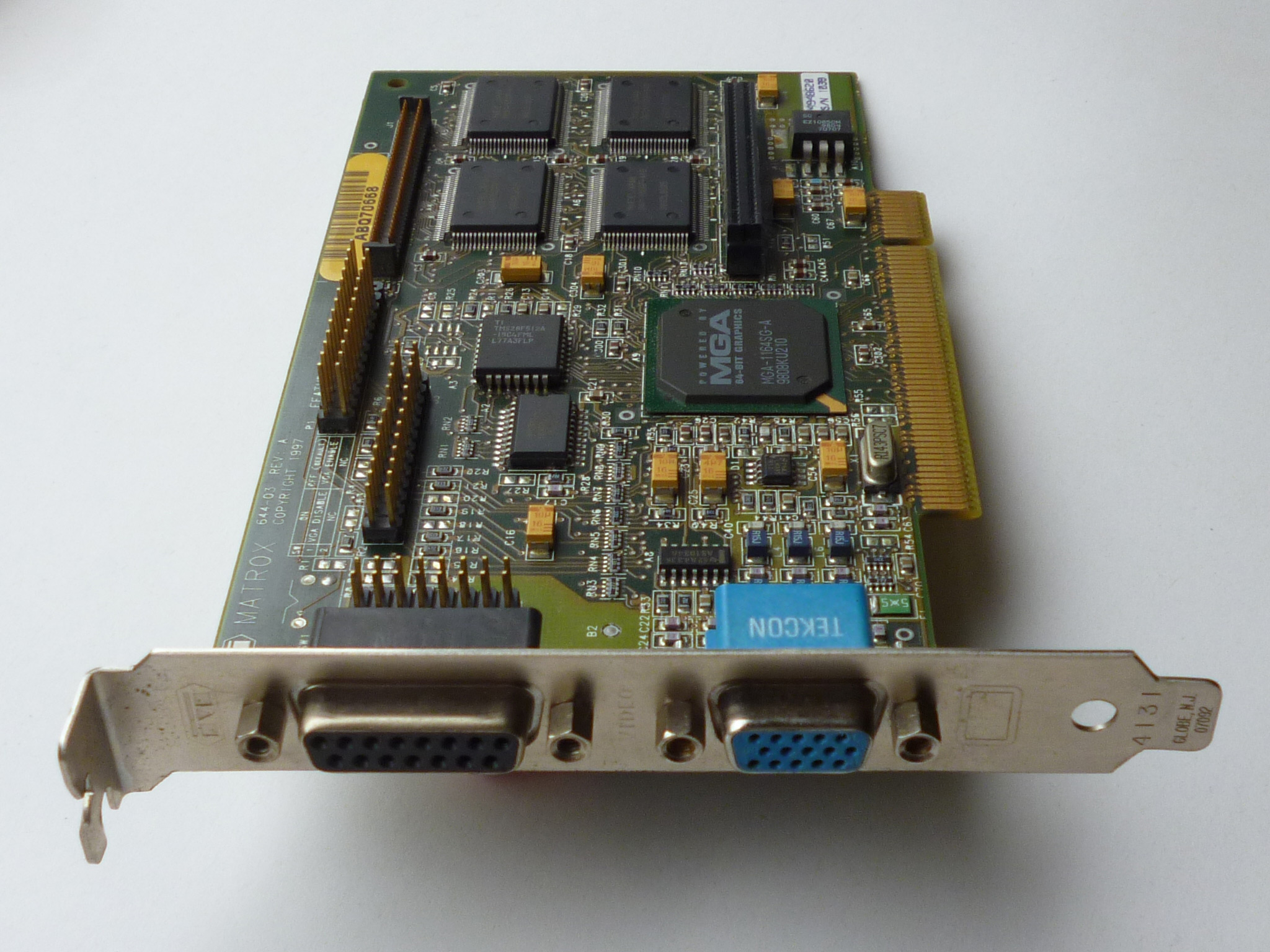

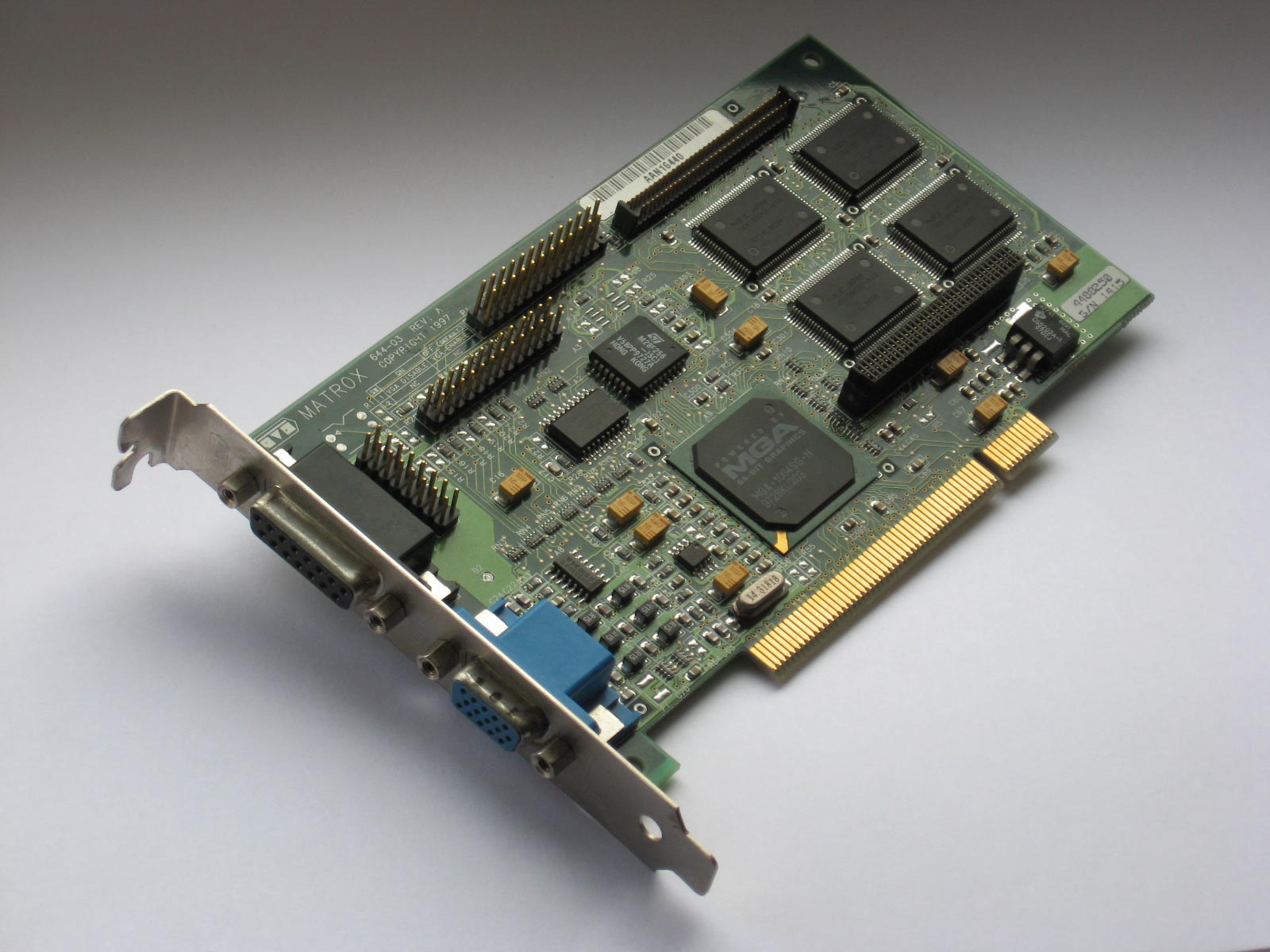

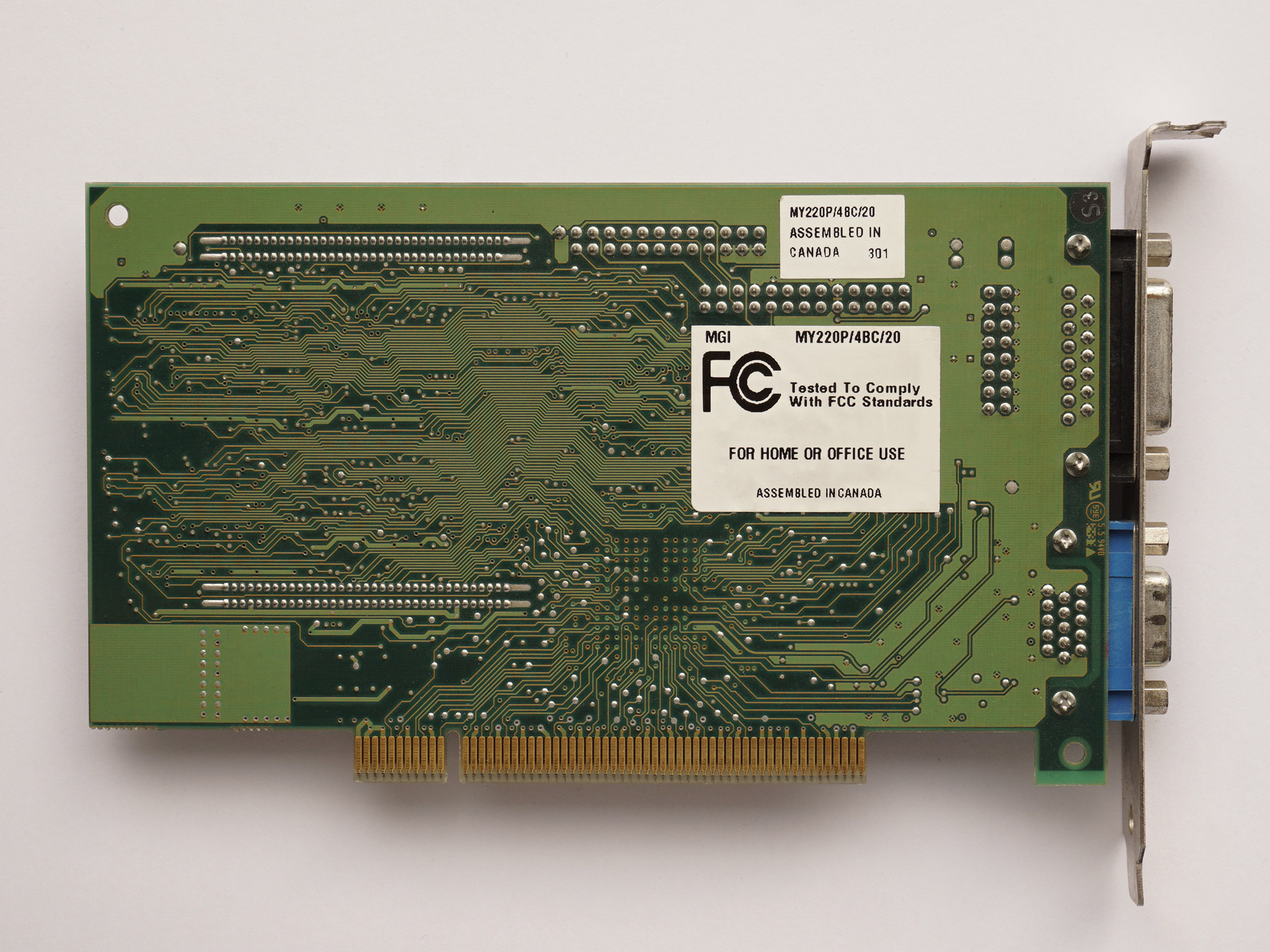

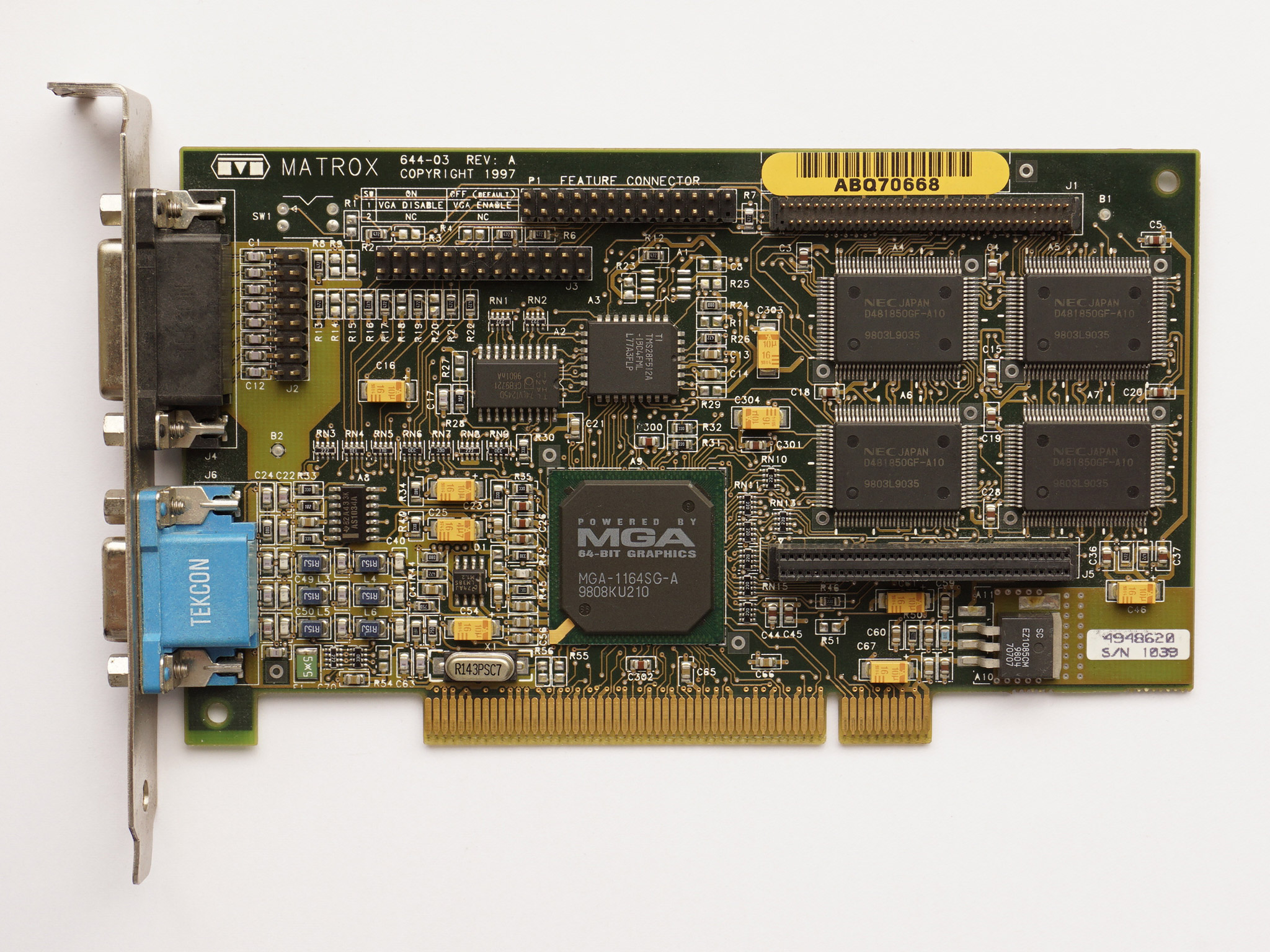

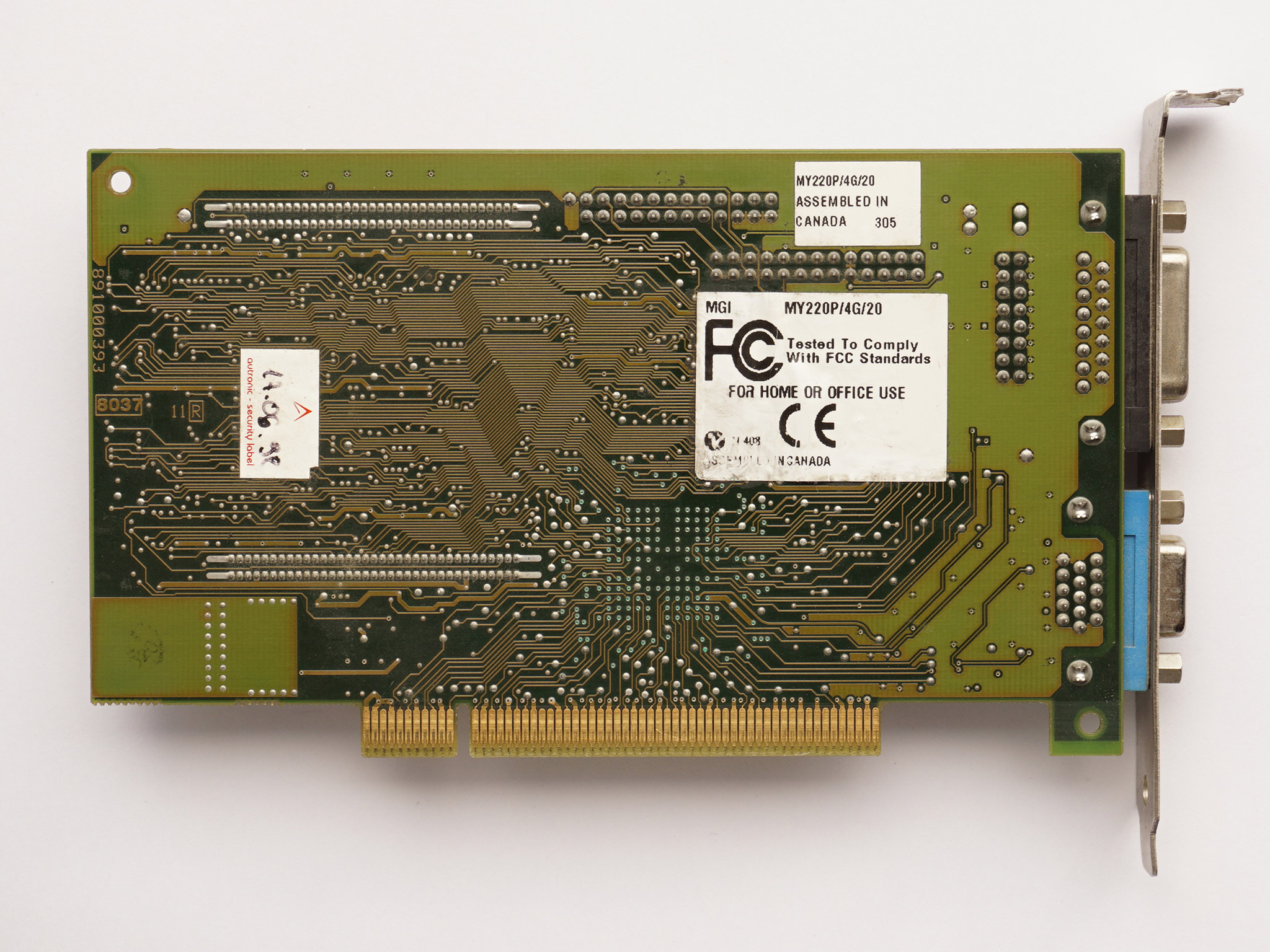

Matrox Mystique220
PCI 4 Mb
Matrox Mystique220
PCI 4 Mb
| Model | Codename | Ramdac | Slot | GPU | Memory | DirectX | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chip | Mhz | µm | Mhz | Mb | ns | Type | bit | Bandwith | |||||
| Matrox Mystique220 644-03 | Cyclone | 220 | PCI | 1064SG-H | 60 | .35 | 90 | 4 | 12 | SGRAM | 64 | 720 | 3.0 |
| Matrox Mystique220 644-03 | 1164SG-A | 66 | 99 | 10 | 792 | ||||||||
Matrox Mystique220 2D performance |
|||
|---|---|---|---|
| CrystalMark09 | |||
| GDI | D2D | ||
| 1468 | 637 | ||
