ATI 3D Rage Pro 2x

Specification ATI graphics cards

Benchmark points

19.8
ATI Rage Pro 2x ATI Rage Pro 2x

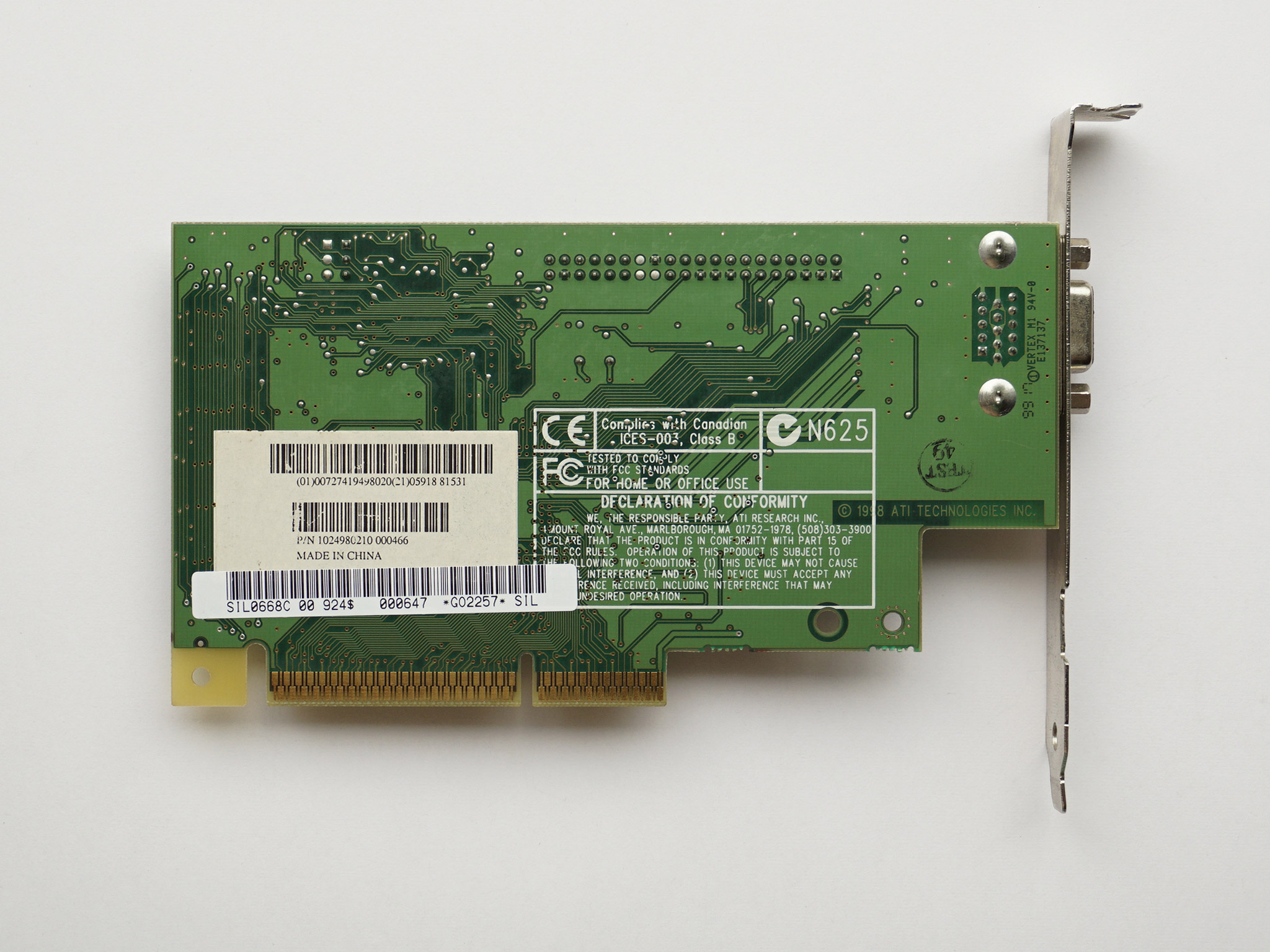

ATI 109-49800-10 AGP 2x 8 Mb Sdram

ATI Rage Pro 2x ATI Rage Pro 2x

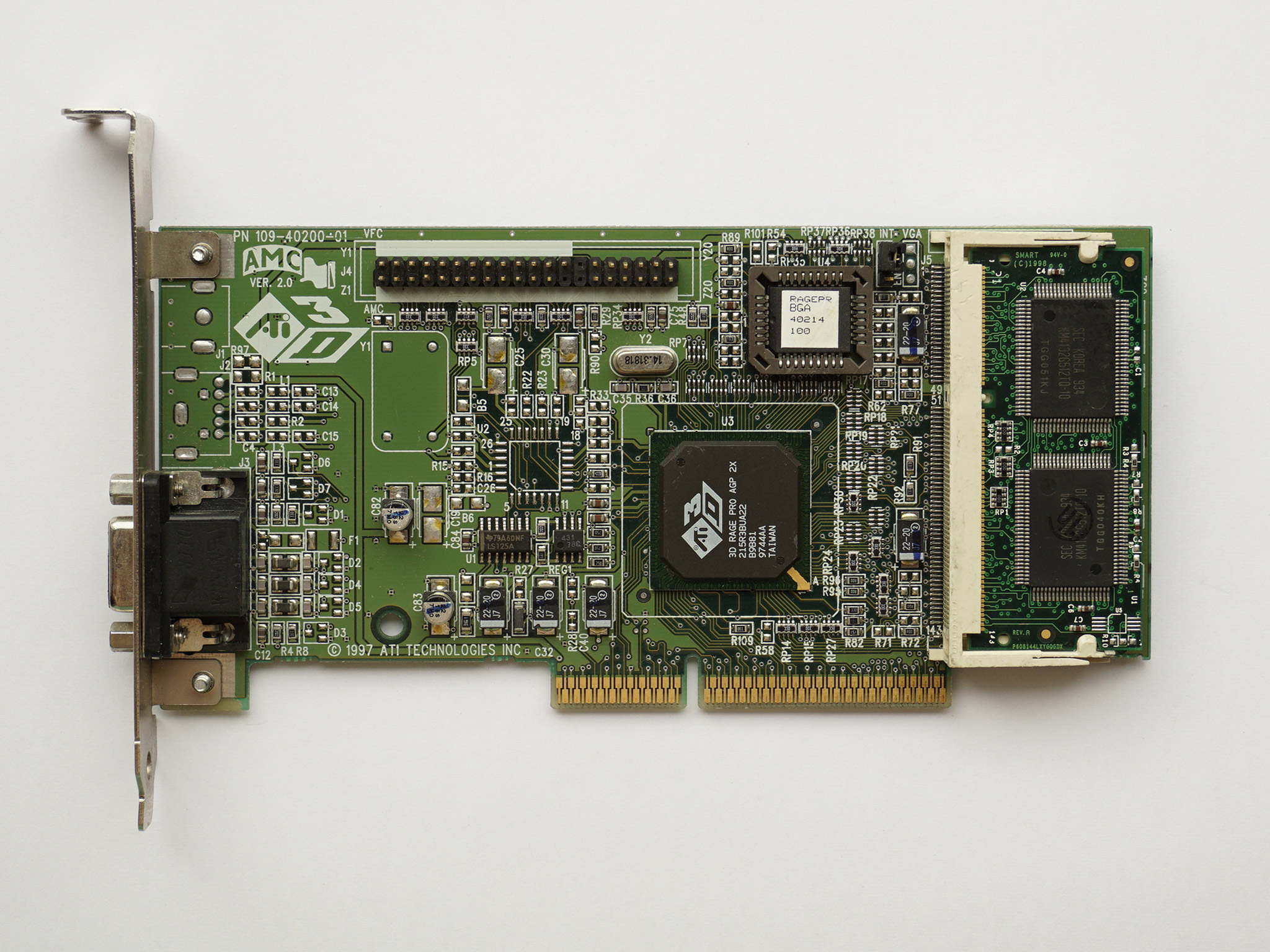

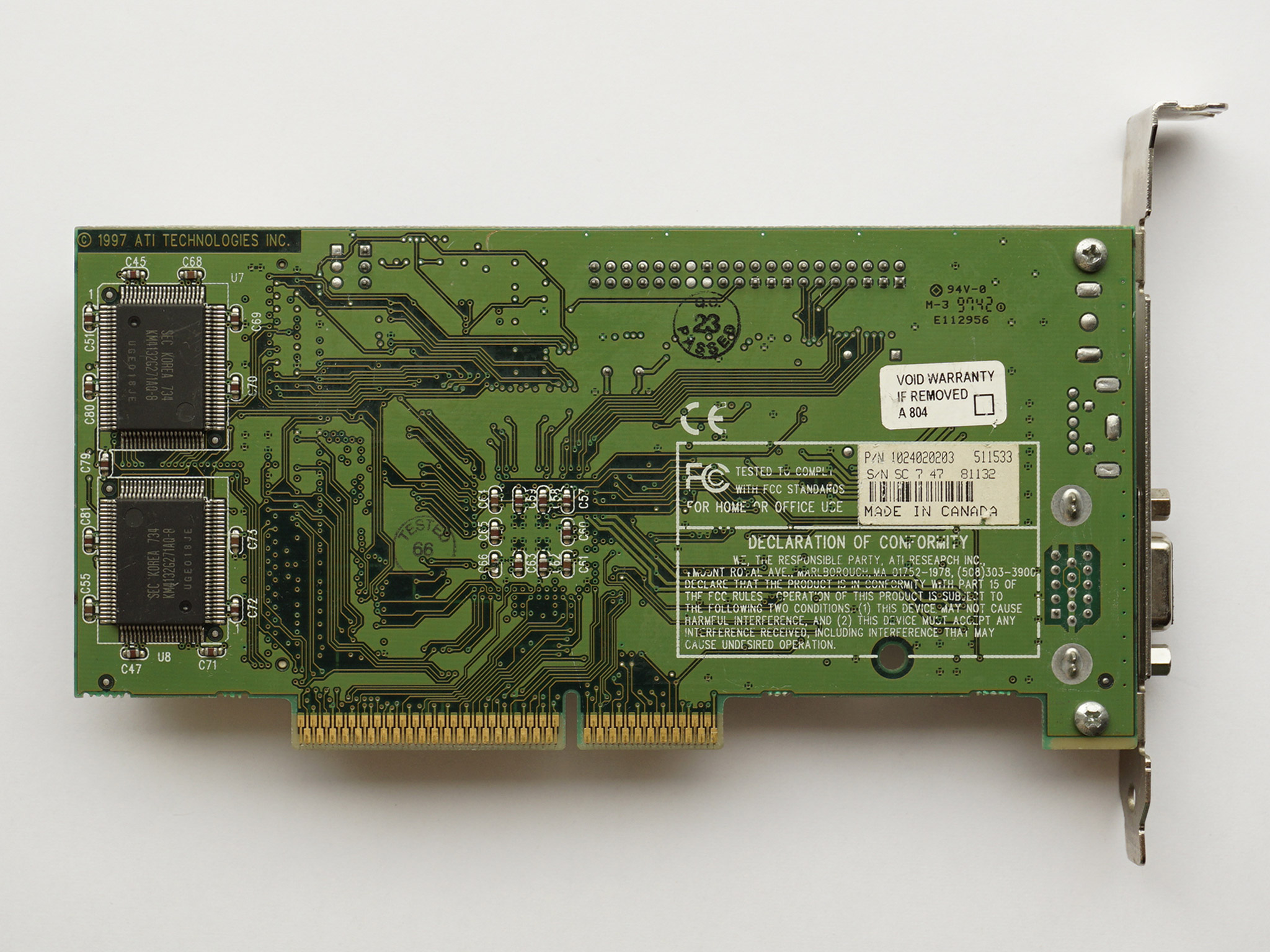

ATI 109-40200-01 4+2 Mb SGRAM

ATI Rage Pro 2x ATI Rage Pro 2x

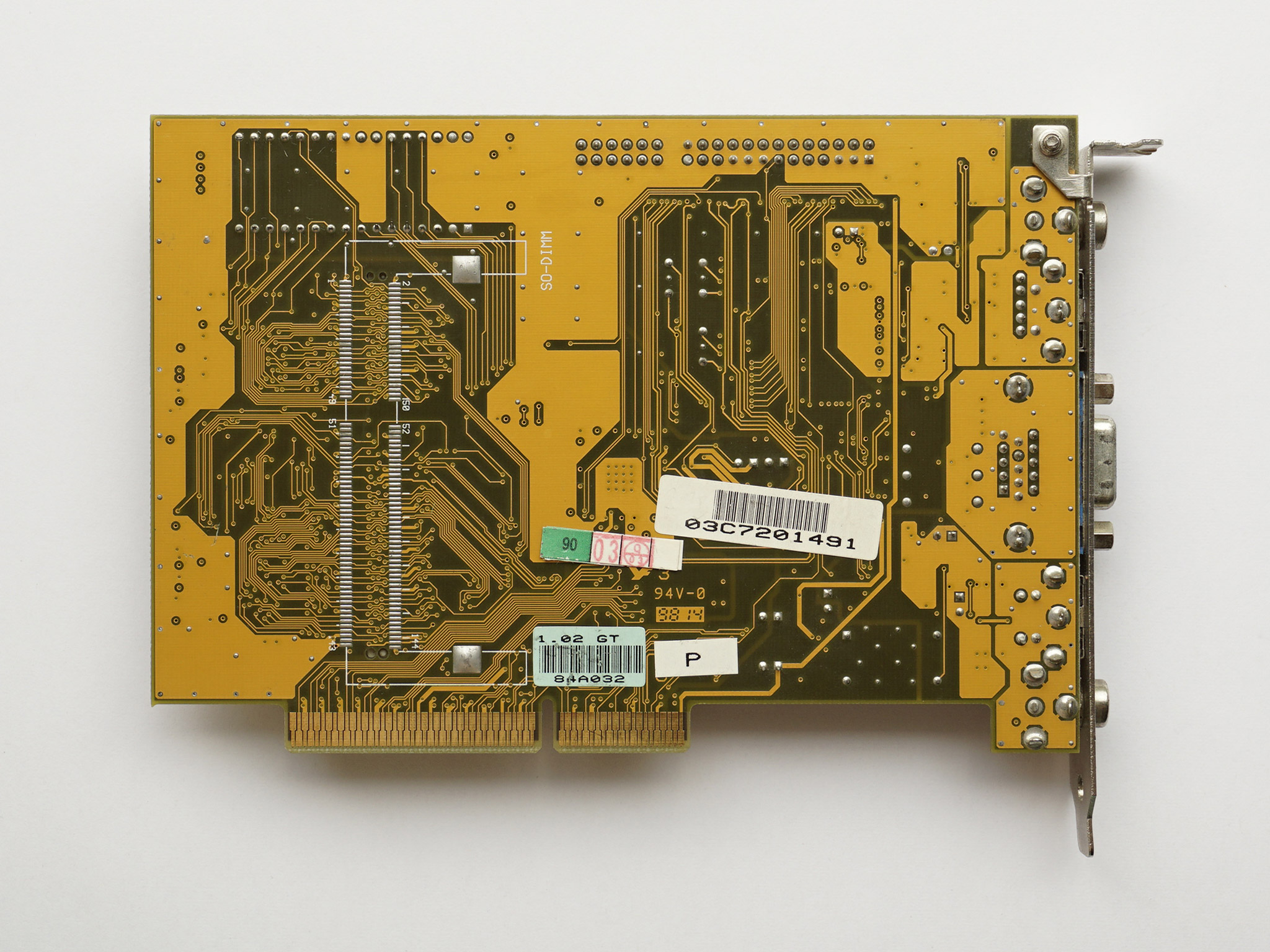

Asus V264GT AGP 2x 2 Mb SGRAM

Manufacturer Ramdac Slot GPU Transistors Memory DirectX OpenGL
Mhz Pipes Fillrate Millions ┬Ám Mhz Mb ns Type bit Bandwith
  ATI Rage Pro 2x 109-49800-10 230 AGP 2x 75 1x1 75 3 .35 100 8 8 Sdram 64 800 6.0 1.1
  ATI Rage Pro 2x 109-40200-01 4+2 SGRAM
  Asus V264GT 67 67 67 2 10 536


ATI Rage Pro 2x benchmark results (XP Driver wxp-j5-30-1-b02) @P800


Model CrystalMark09 Quake3 Demo 3DMark 2000 3DMark 2001SE SeriousSam FE
GDI D2D DirectX OpenGL
  ATI 109-49800-10 1407 471 8.6 447 - 12.1 8.3
