ATI Radeon X800 XL (R430)
Specification ATI graphics cards Benchmark points |
|---|
| 1987 |

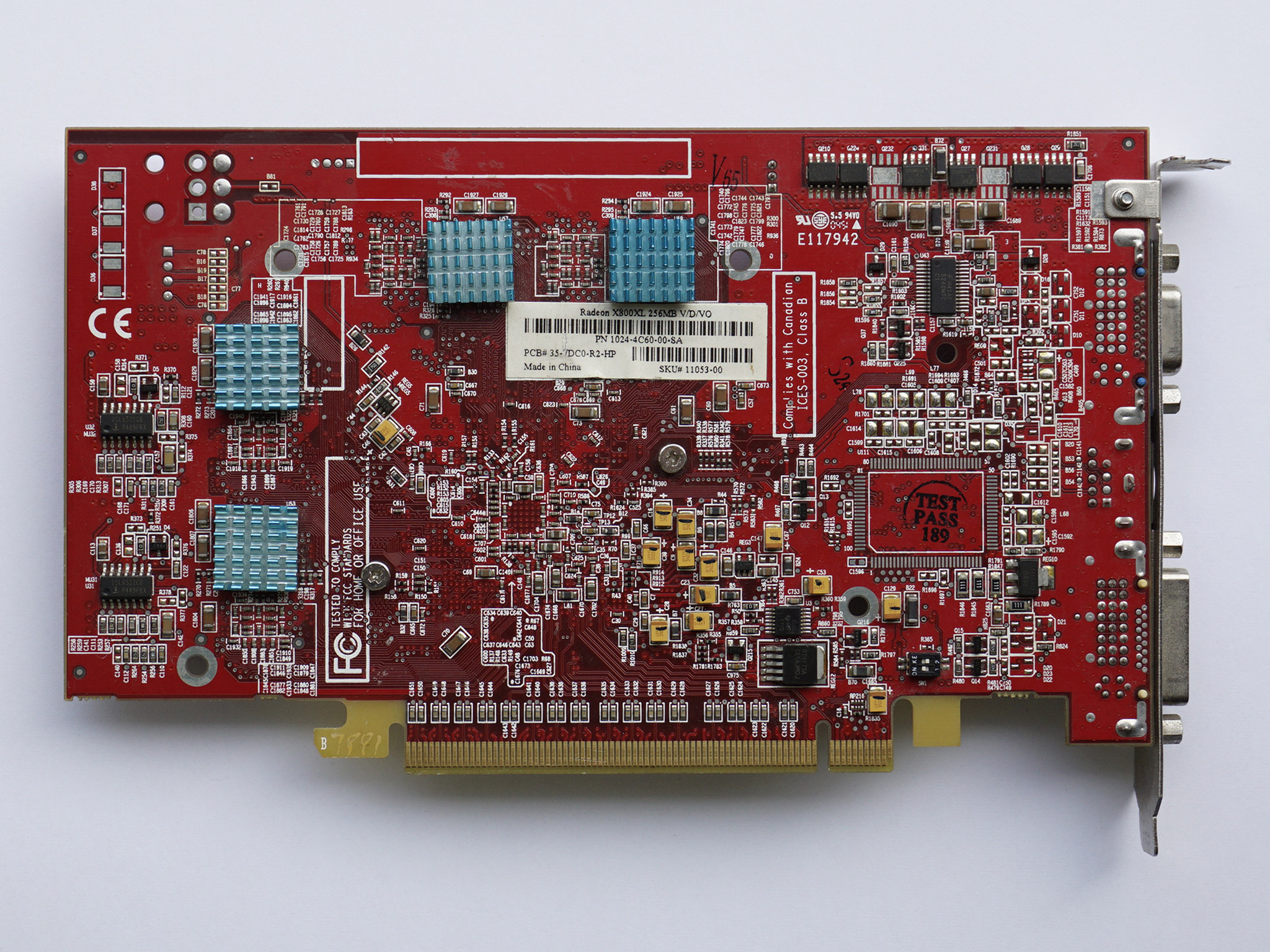

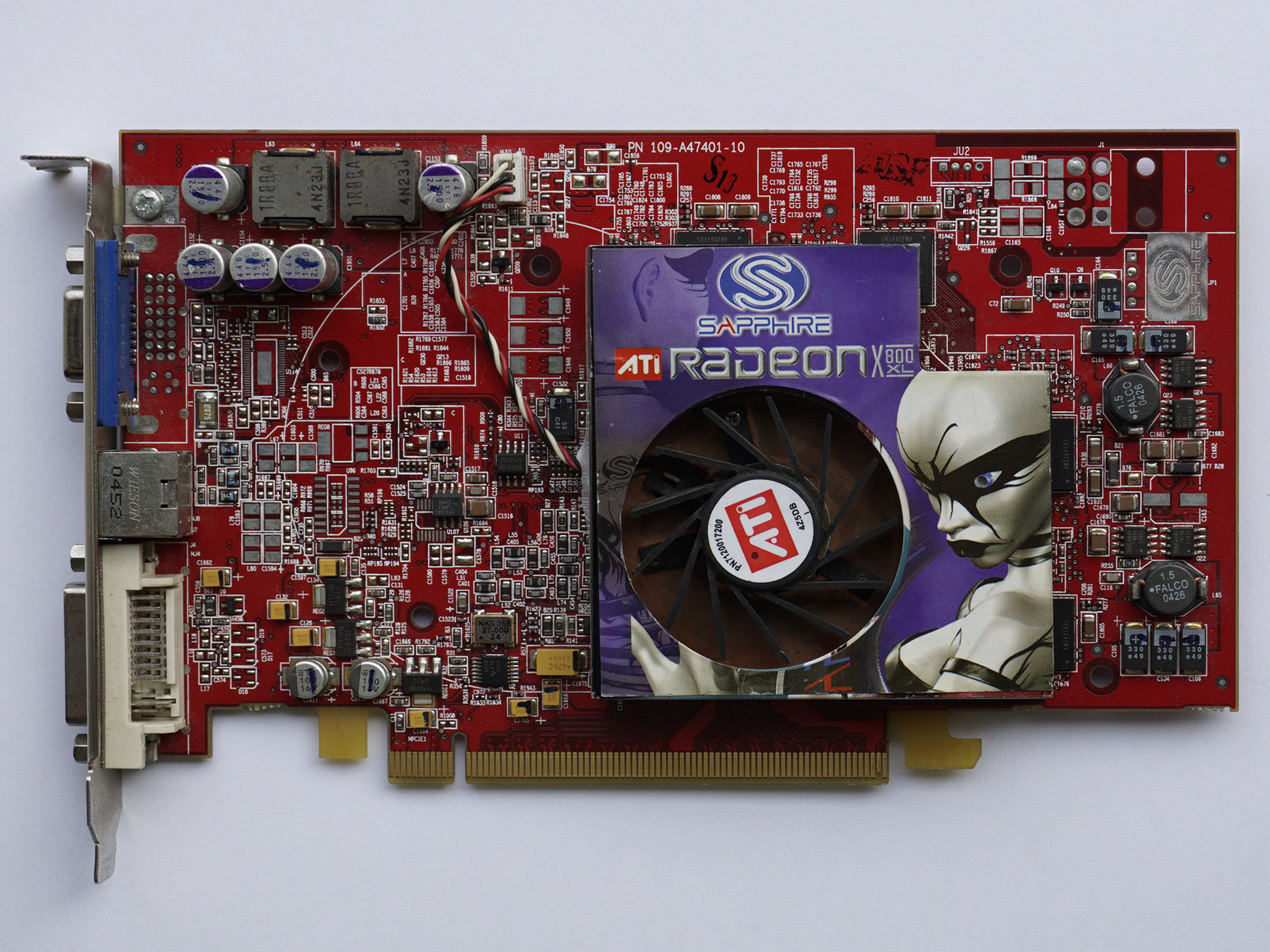

Sapphire Radeon X800 XL PCIe 256 Mb
| Manufacturer | Ramdac | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mhz | Pipes | Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | |||||
| Sapphire Radeon X800 XL | 400 | PCIe | 398 | 16x1x6 | 6368 | 160 | .11 | 493 | 256 | - | DDR3 | 256 | 31552 | 9.0 | 2.0 |
ATI Radeon X800 XL benchmark results (XP Driver 5.7)
| Model | CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | Aquamark3 | Chameleonmark | ||
|---|---|---|---|---|---|---|---|---|---|
| GDI | D2D | DirectX | OpenGL | ||||||
| ATI Radeon X800 XL | 10148 | 7882 | 428.3 | 24209 | 25995 | 209.3 | 353.8 | 48992 | 328.30 |
