ATI Radeon 9600 Pro (RV350)
Specification ATI graphics cards Benchmark points |
|---|
| 1179 |

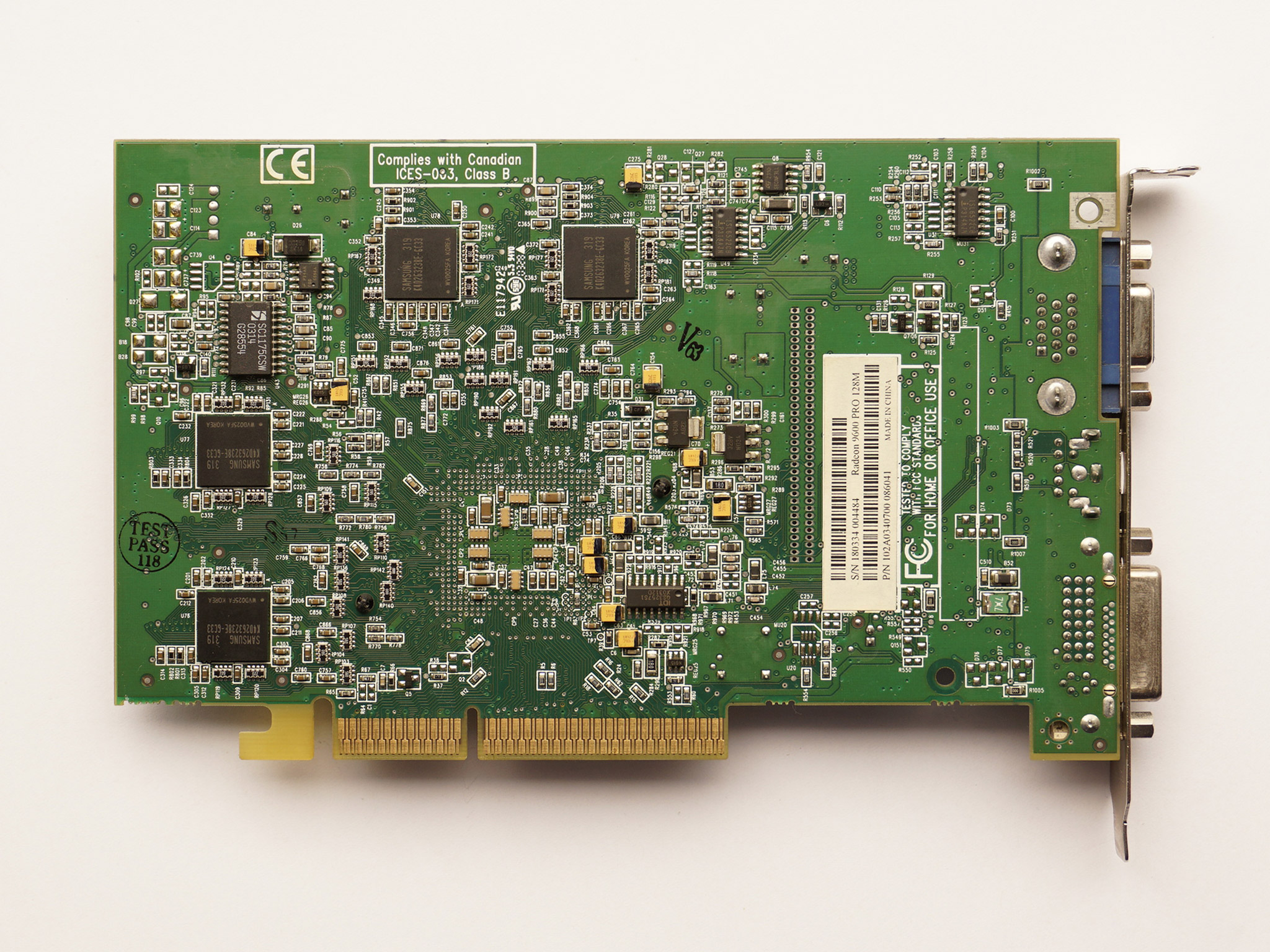

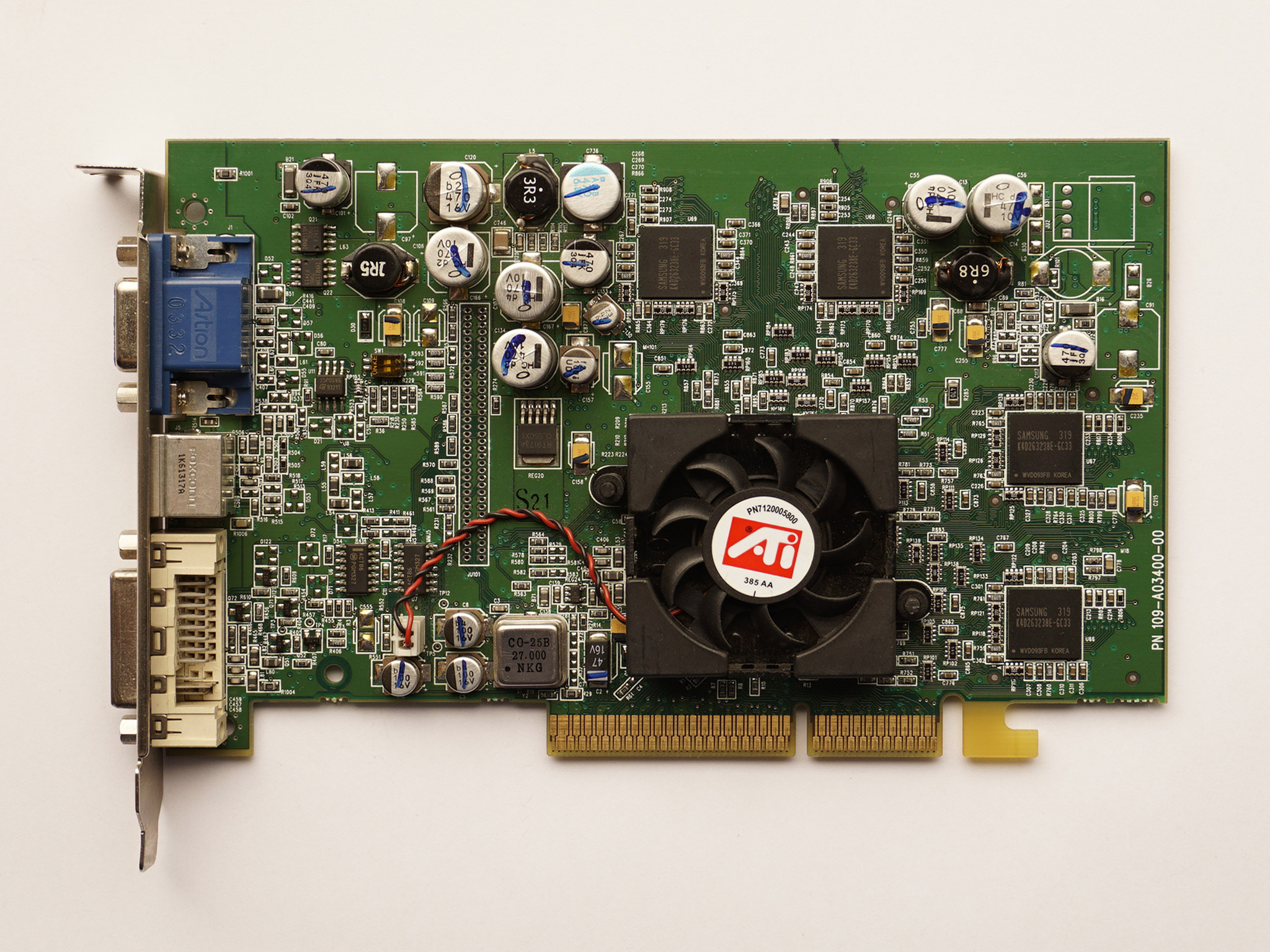

ATI 109-A03400-00 AGP 8x 128 Mb

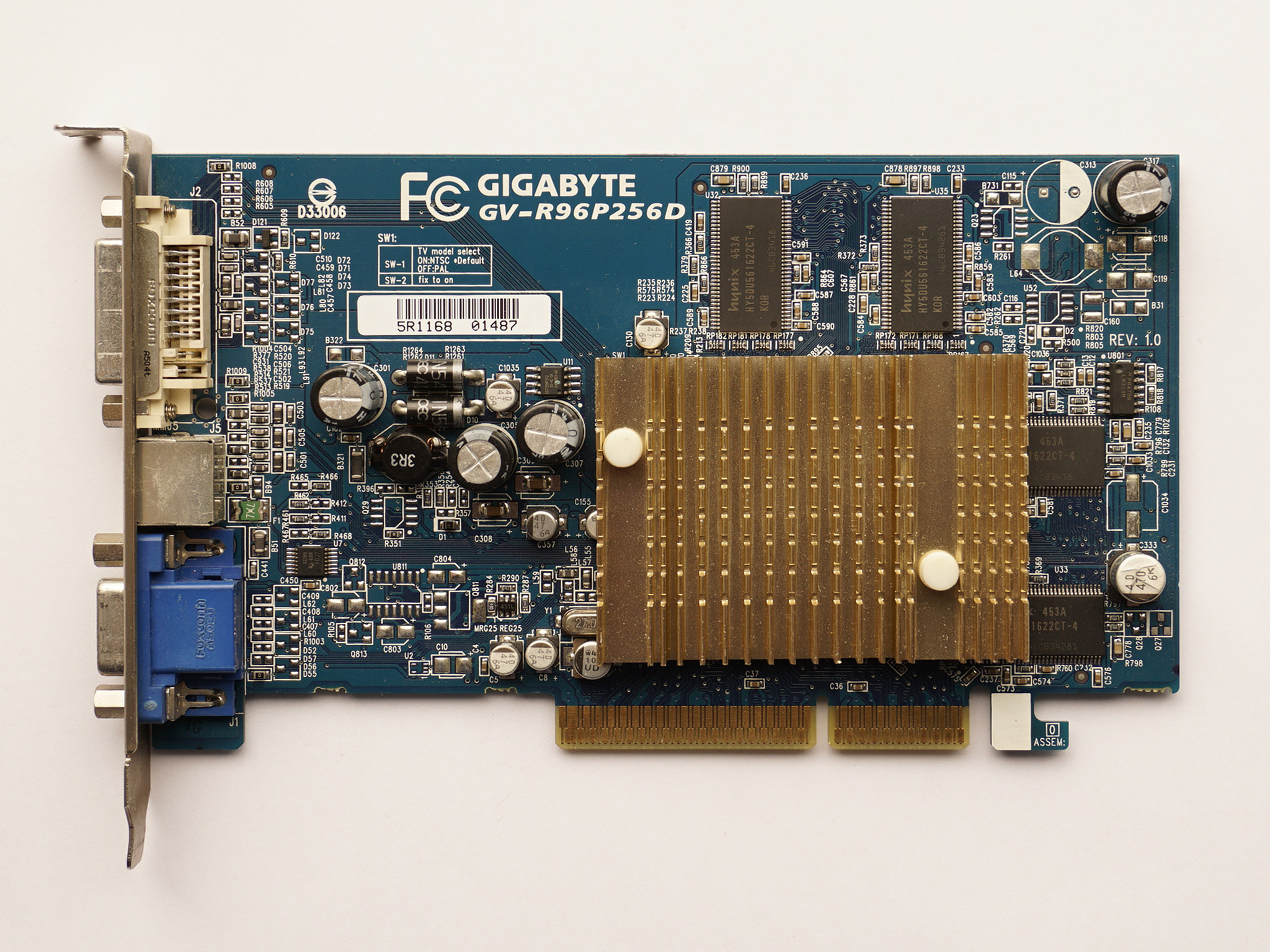

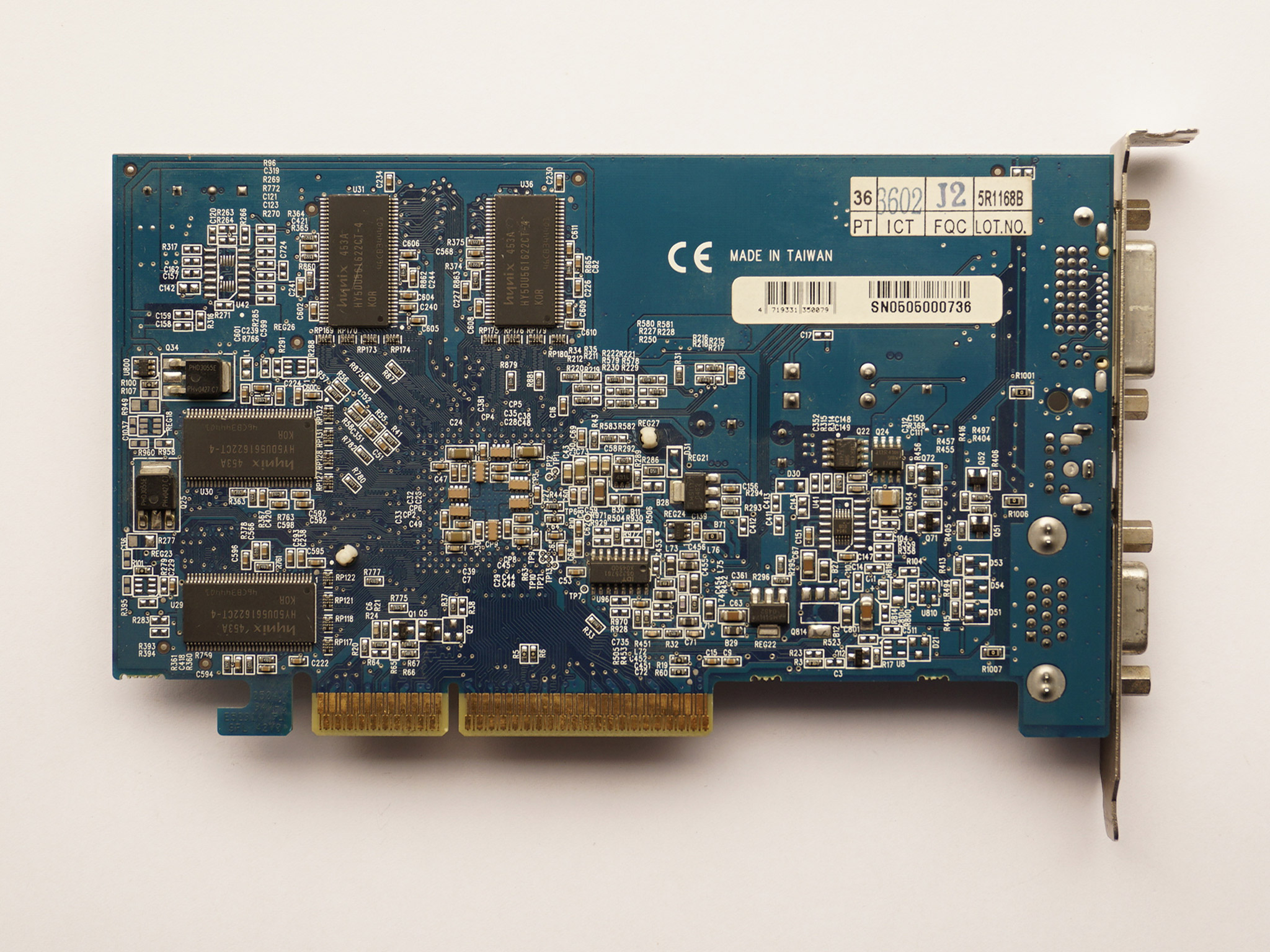

Gigabyte GV-R96P256D AGP 8x 256 Mb
| Manufacturer | Ramdac | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mhz | Pipes | Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | |||||
| ATI 109-A03400-00 | 400 | AGP 8x | 398 | 4x1x2 | 1592 | 75 | .13 | 297 | 128 | 3.3 | DDR | 128 | 9504 | 9.0 | 2.0 |
| Gigabyte GV-R96P256D | 202 | 256 | 4 | 6464 | |||||||||||
ATI Radeon 9600 Pro benchmark results (XP Driver 5.7)
| Model | CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | Aquamark3 | Chameleonmark | ||
|---|---|---|---|---|---|---|---|---|---|
| GDI | D2D | DirectX | OpenGL | ||||||
| ATI 109-A03400-00 | 12895 | 5299 | 593.5 | 18661 | 15375 | 265.2 | 415.9 | 29255 | 94.80 |
