AMD Radeon HD2600 Pro (RV630)
Specification ATI graphics cards Benchmark points |
|---|
| 1580 |

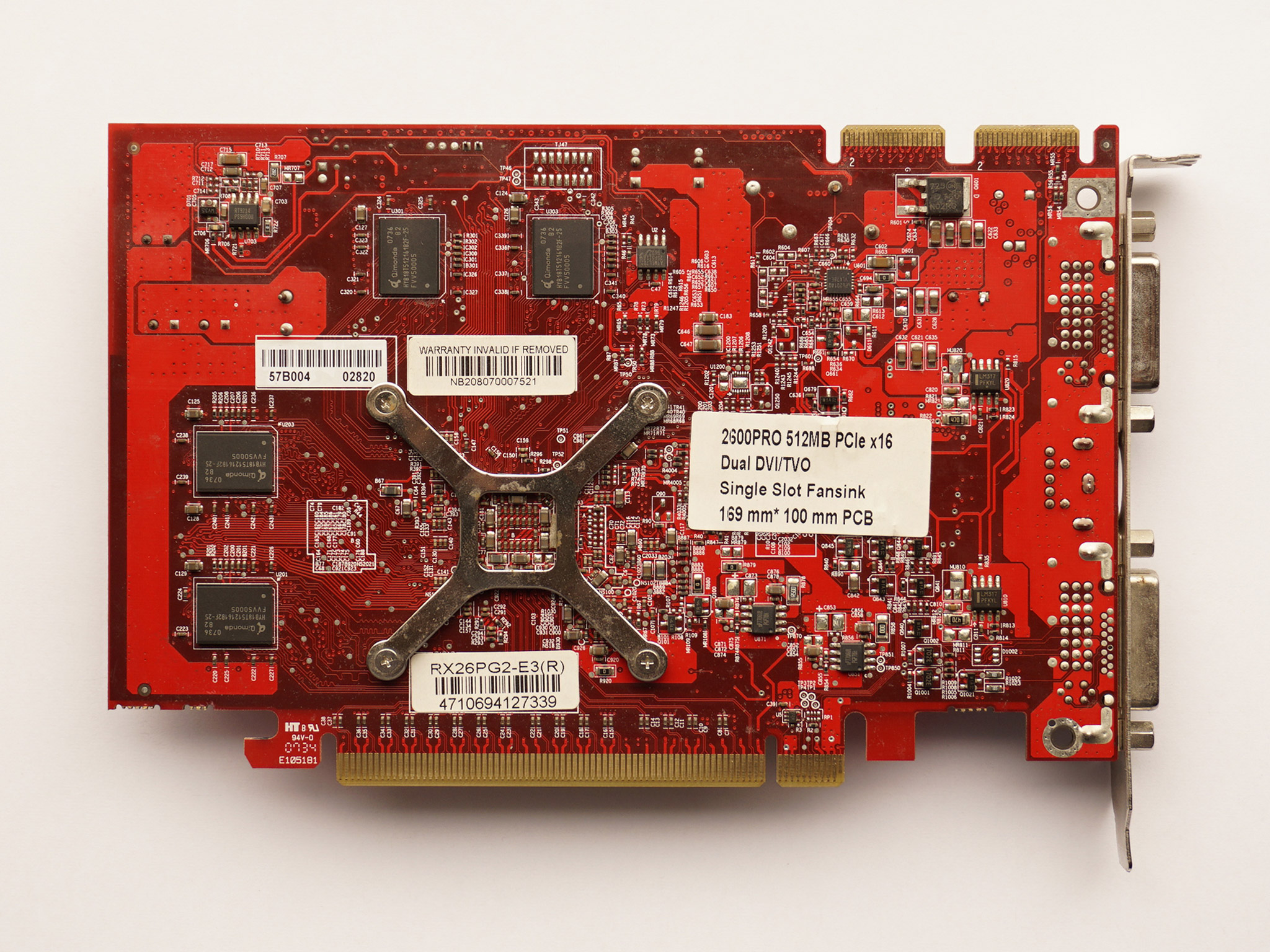

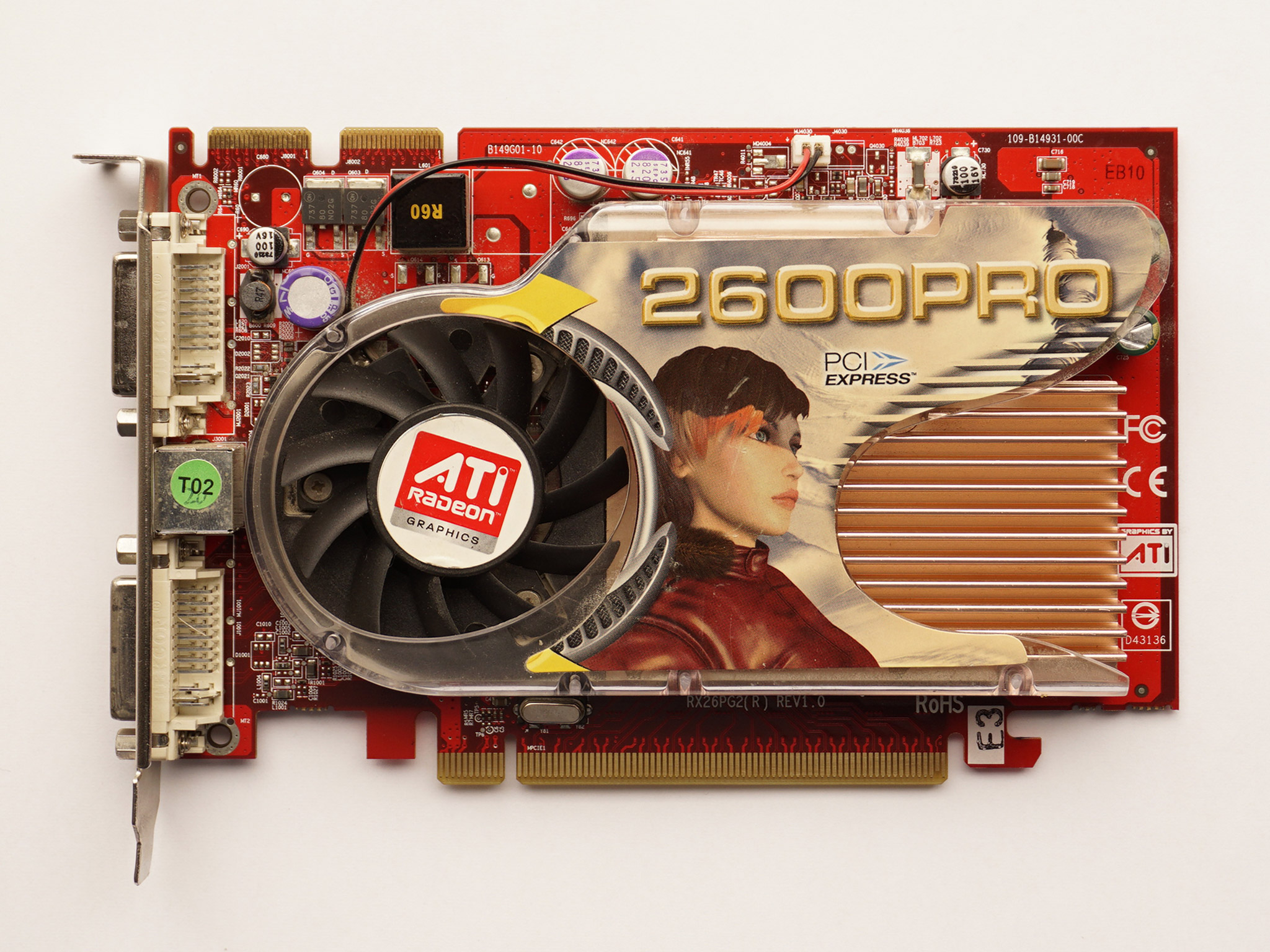

GeCube Radeon HD2600 Pro PCIe 512 Mb
| Manufacturer | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TDP Watts |
GPU Clock | Shader Clock | ROPs/TMUs /Shaders |
Fillrate | Millions | nm | Mhz | Mb | ns | Type | bit | Bandwith | ||||
| GeCube HD2600 Pro | PCIe | 35 | 601 | 4/8/120 | 4808 | 390 | 65 | 405 | 512 | 25 | DDR2 | 128 | 12960 | 10.1 | 3.2 | |
GeCube HD2600 Pro PCIe benchmark results (XP Driver 13.4)
| CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | Aquamark3 | Chameleonmark | ||
| GDI | D2D | DirectX | OpenGL | |||||
| 7268 | 2850 | 646.8 | 23275 | 23265 | 92.1 | 264.6 | 41355 | 204.29 |
