nVidia GeForce 9600 GT (G94)
Specification nVidia graphics cards Benchmark points |
|---|
| 4012 |

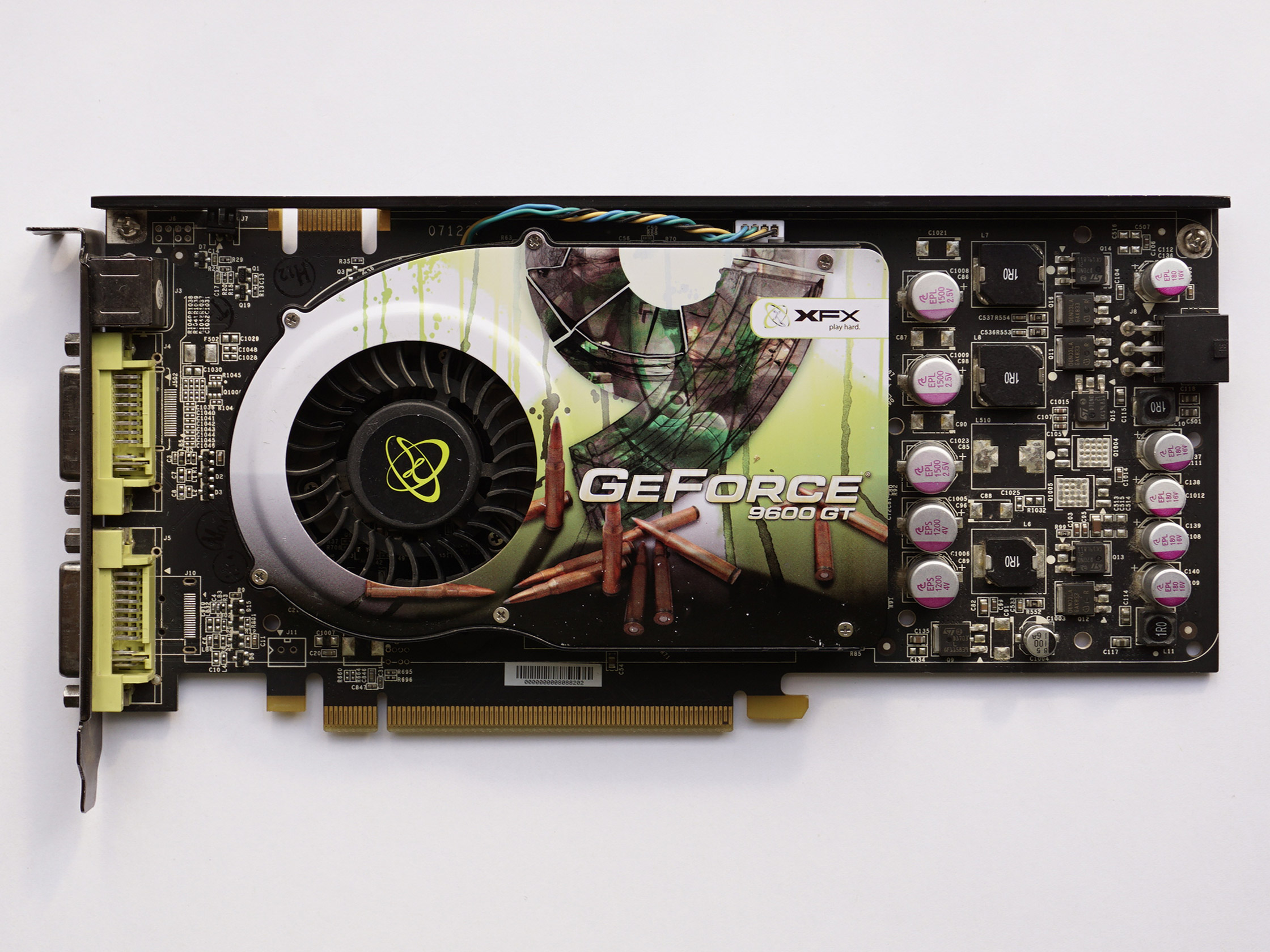

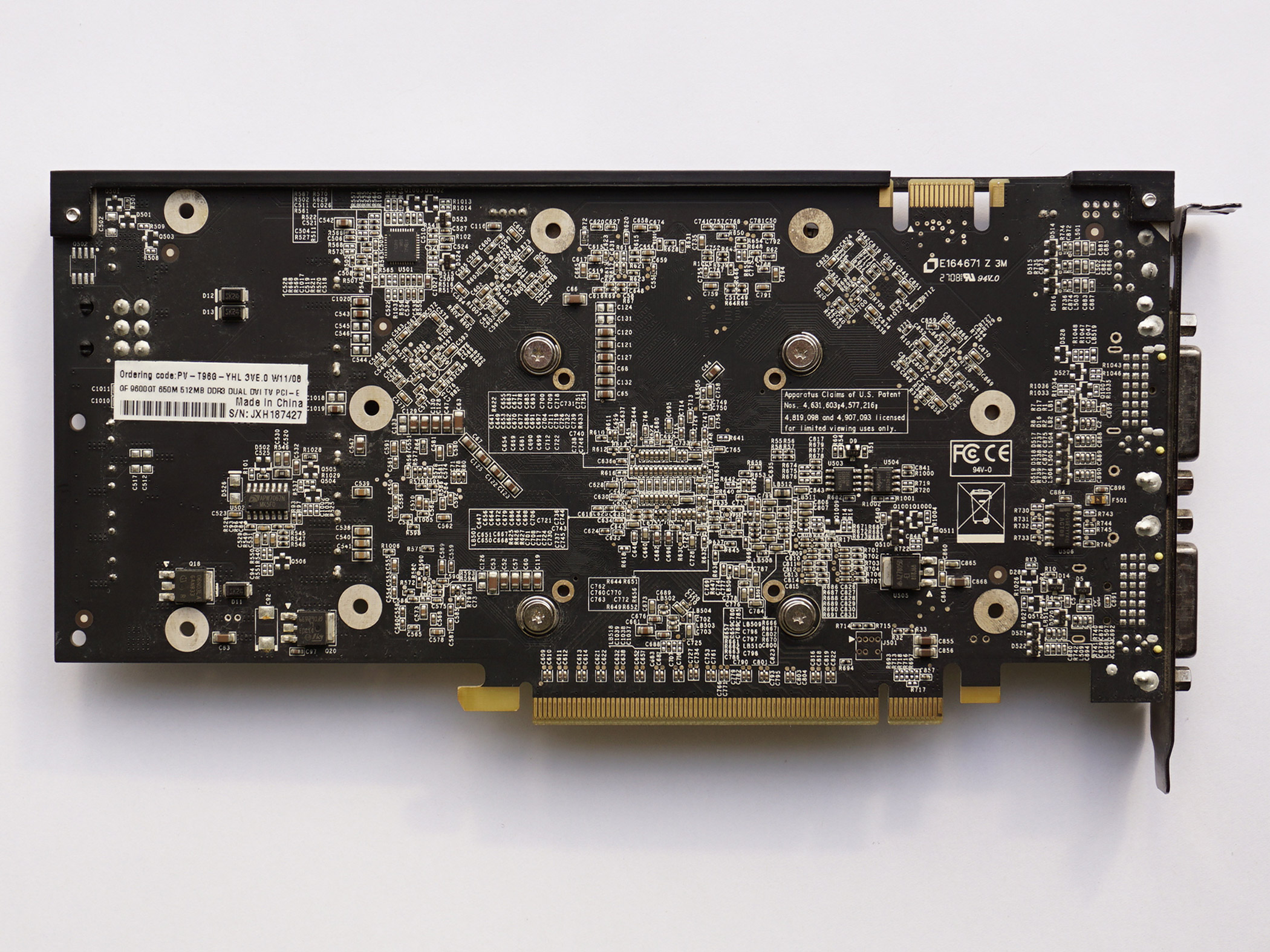

XFX GeForce 9600 GT PCIe x16 512 Mb
| Manufacturer | Slot | GPU | Transistors | Memory | DirectX | OpenGL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TDP Watts |
GPU Clock | Shader Clock | ROPs/TMUs /Shaders |
Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | ||||
| XFX GF 9600 GT | PCIe | 95 | 650 | 1600 | 8/16/32 | 15600 | 505 | .065 | 800 | 512 | DDR3 | 256 | 51200 | 10.0 | 3.3 | |
nVidia GeForce 9600 GT benchmark results (XP Driver 335.04)
| CrystalMark09 | Quake3 Demo | 3DMark 2000 | 3DMark 2001SE | SeriousSam FE | Aquamark3 | Chameleonmark | ||
| GDI | D2D | DirectX | OpenGL | |||||
| 10644 | 7490 | 629.3 | 23785 | 39112 | 186.8 | 362.4 | 123928 | 883.32 |
