ATI Radeon 7000 (RV100)
Specification ATI graphics cards

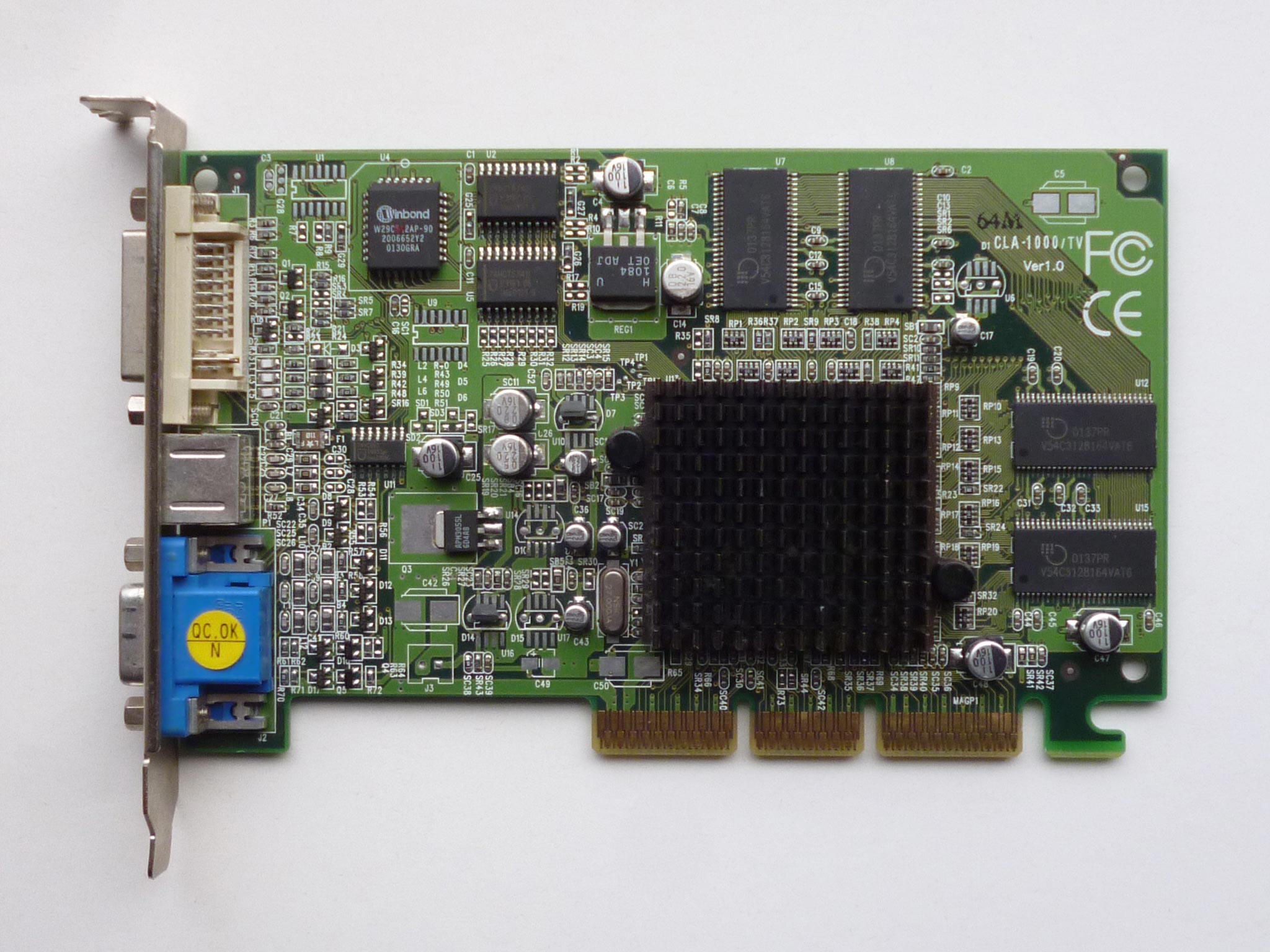

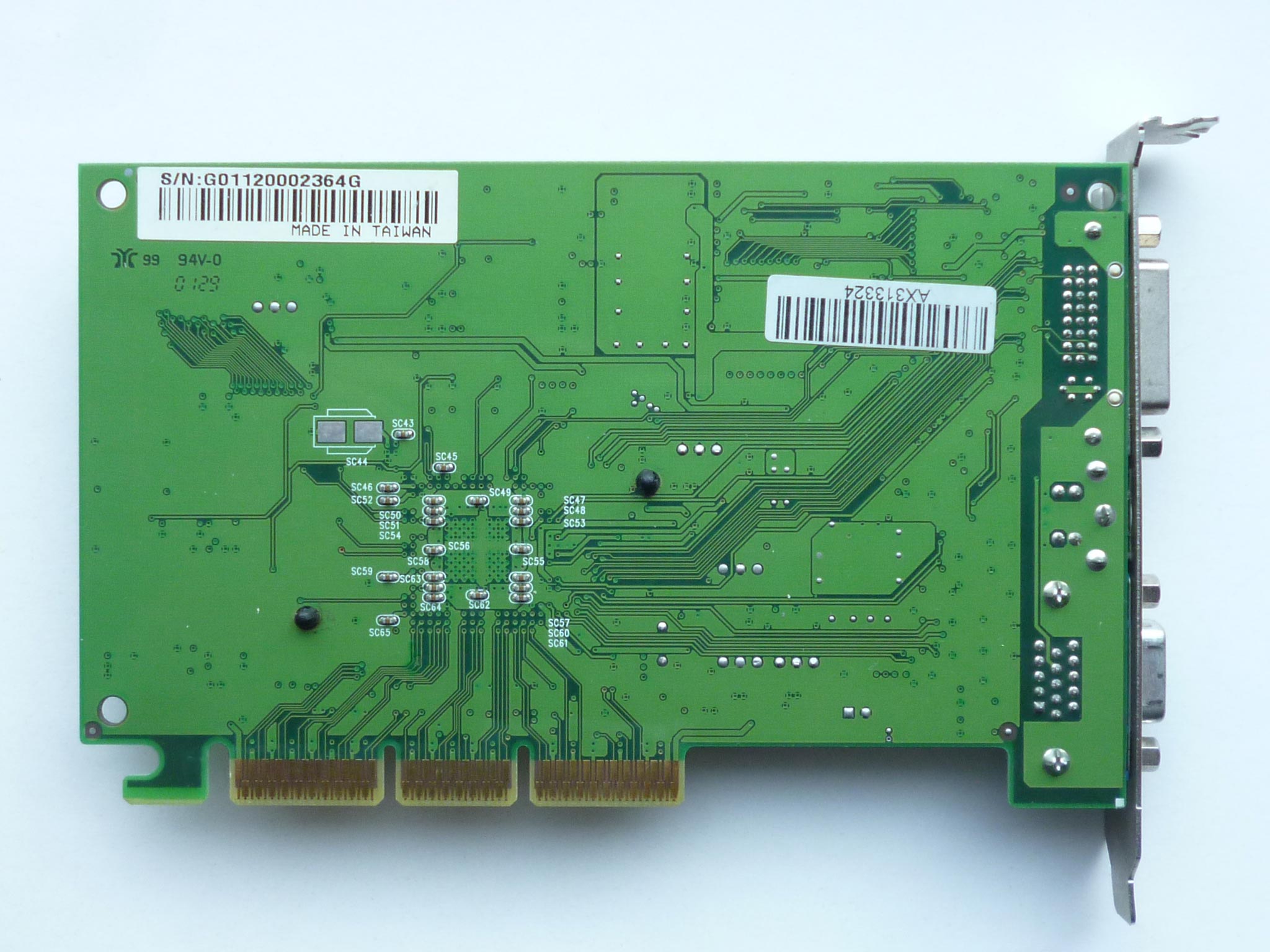

Tul CLA-1000/TV AGP 4x 64 Mb

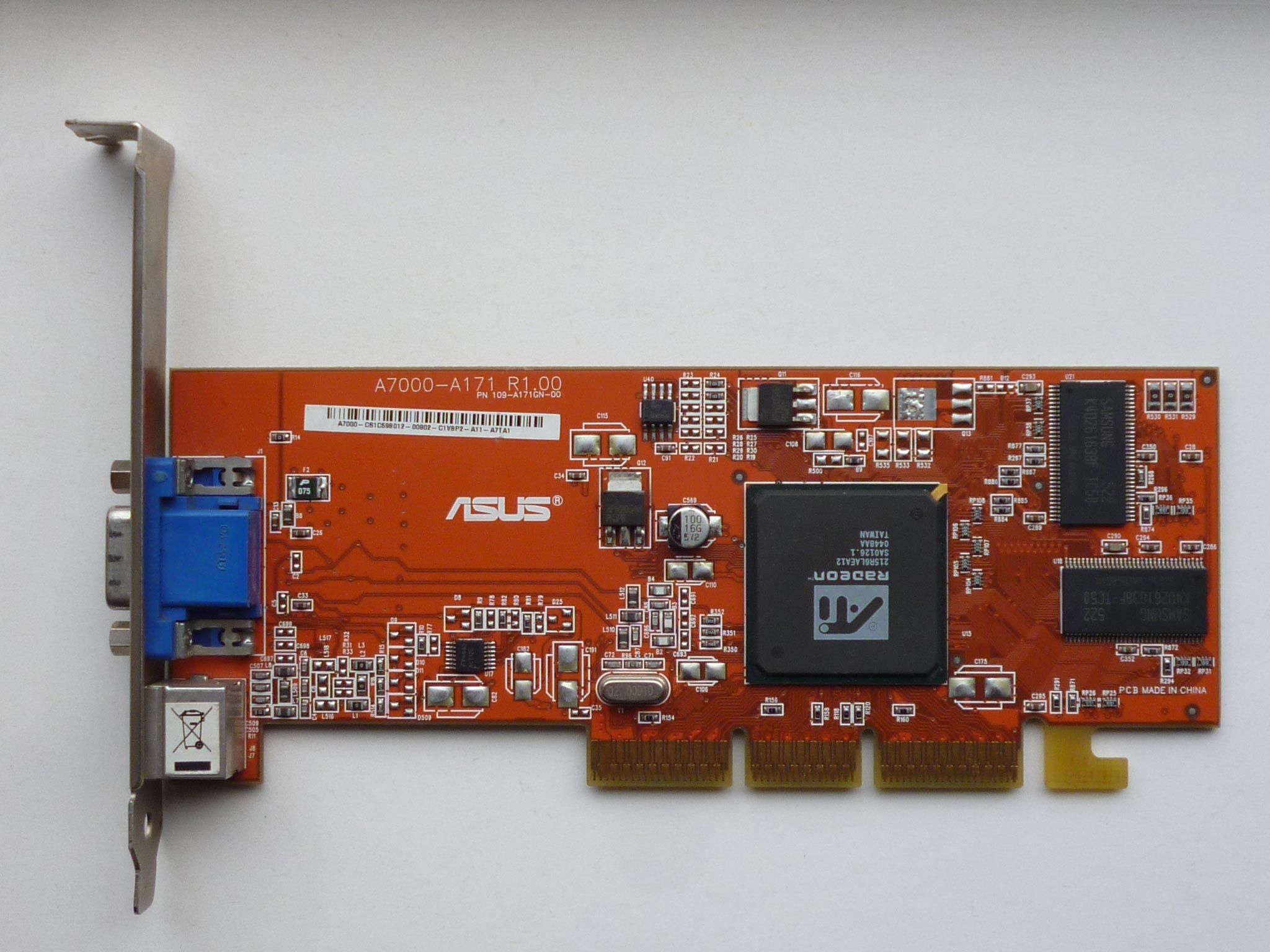

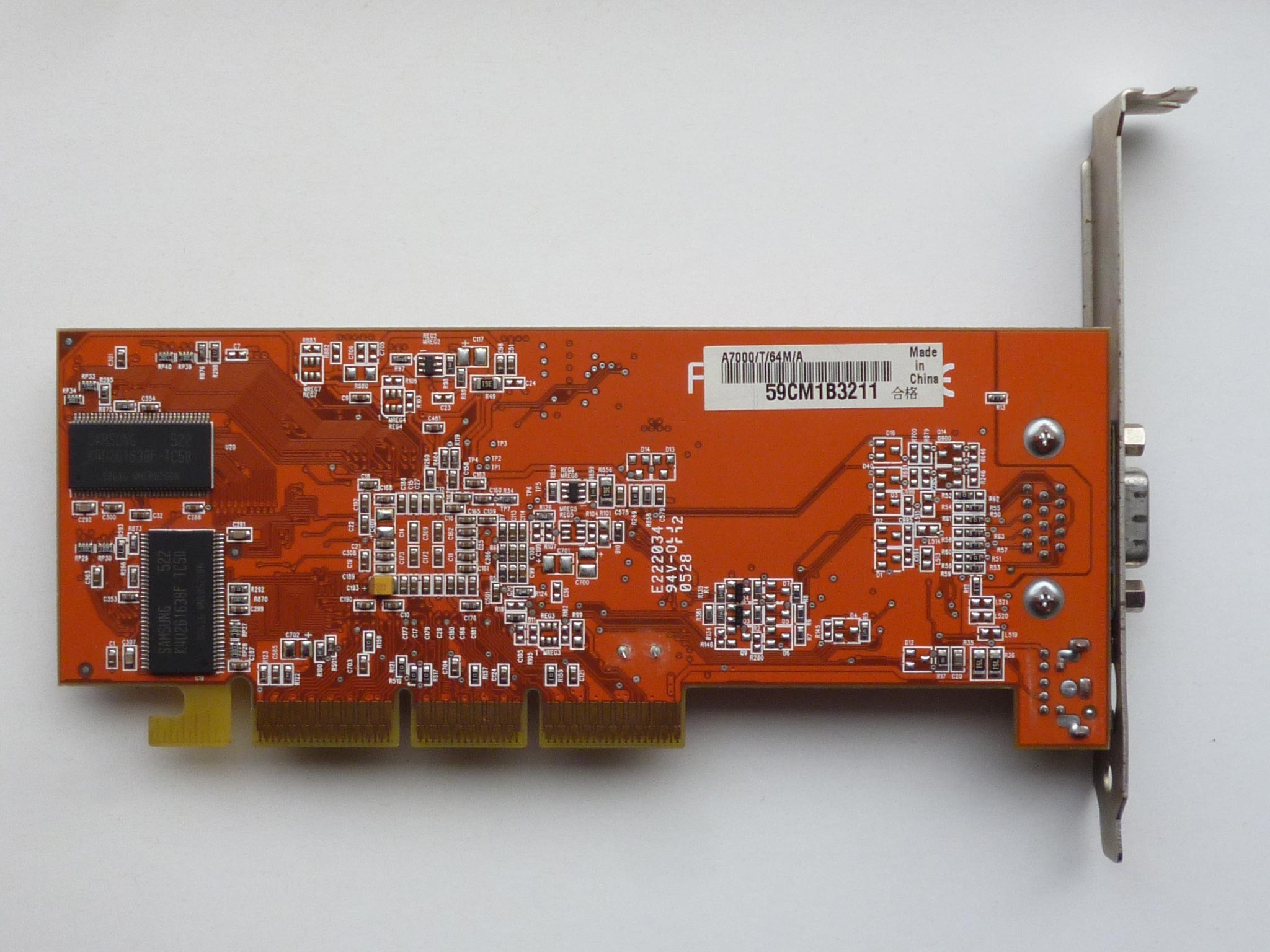

Asus A7000-A171 AGP 4x 64 Mb

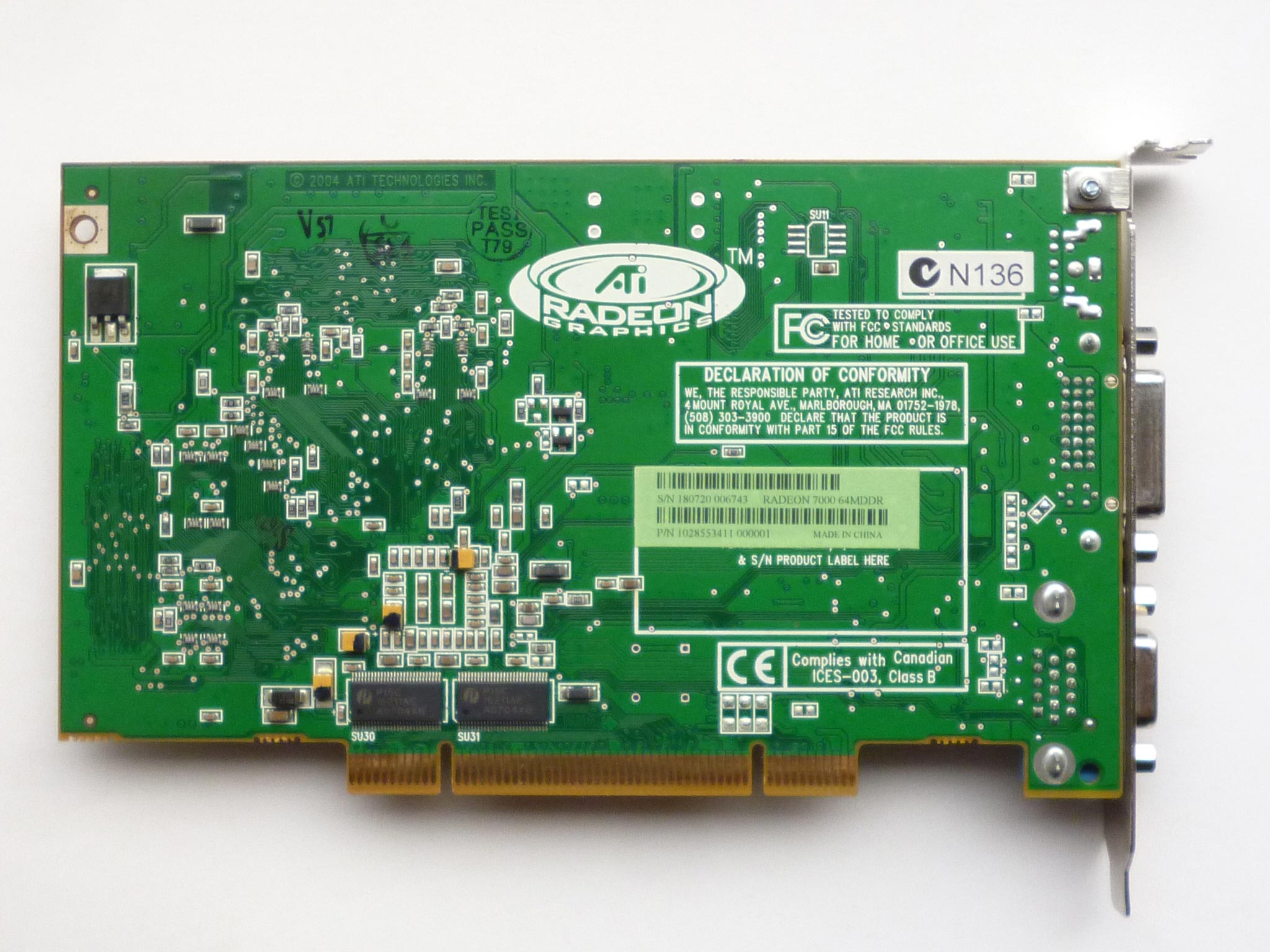

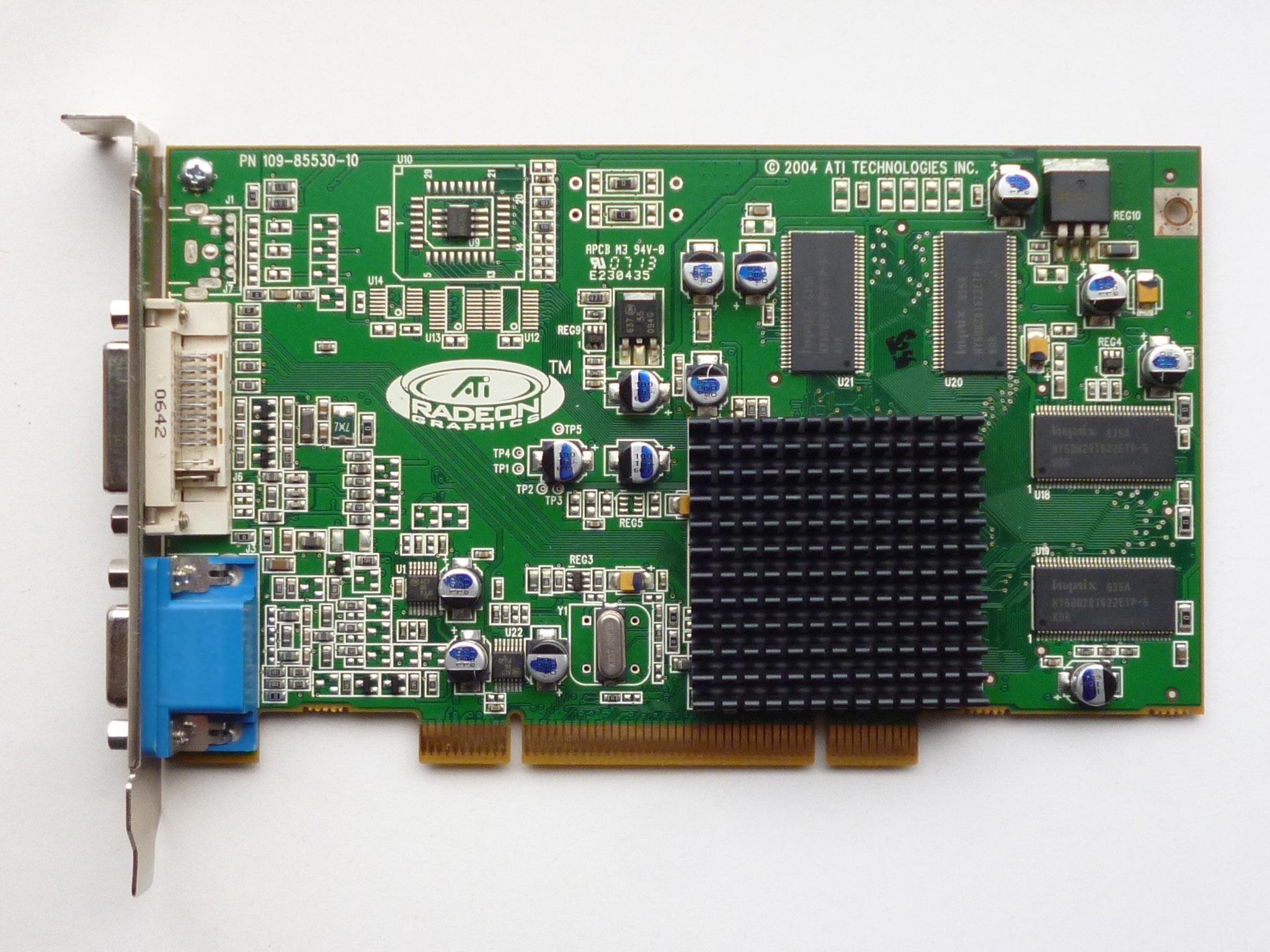

ATI Radeon 7000 PCI 64 Mb
GeCube Radeon 7000 PCI 32 Mb
| Manufacturer | Ramdac | Slot | GPU | Transistors | Memory | DirectX | OpenGL | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mhz | Fillrate | Millions | µm | Mhz | Mb | ns | Type | bit | Bandwith | |||||
| Tul Radeon 7000 | 300 | AGP 4x | 160 | 480 | 30 | .18 | 160 | 64 | 6 | Sdram | 64 | 1280 | 7.0 | 1.3 |
| Asus Radeon 7000 | 148 | 444 | 148 | 50 | DDR | 2368 | ||||||||
| ATI 109-85530-10 | PCI | 5 | ||||||||||||
| GeCube R70PCI-A3 | 142 | 32 | 6 | 2272 | ||||||||||
